COMBISTAR Impeller pumpCombistar 2000-A | 2000-B

The pump is made from a mix of materials for all liquids that also contain abrasive substances.

Our COMBISTAR is made from a mix of materials. All parts that come into contact with media are made from stainless steel. The pump body is made from aluminum. It is therefore suitable for all liquids that also contain abrasive substances, such as:


  • Waste water
  • Grinding emulsions
  • Coolants
  • Lime milk
  • Drilling water
  • Electroplating sludge
  • Contaminated oils
  • Cooling lubricants

Depending on the model, the maximum flow rate is between 15 and 60 l/min.

This pump type offers an inexpensive alternative to the NIROSTAR series for pumping abrasive or slightly corrosive media such as contaminated liquids and deposits.

Areas of application

Variants / Versions

Pump carrier(PT)

The adapter for pump types A and B is designed for mounting the pump on standard motors of size M71 B3/B14.

The pump carrier coupling from ZUWA serves as a quick-change system for the pump head, ensuring minimal downtime.

In addition, the coupling protects the motor from contact with aggressive liquids.

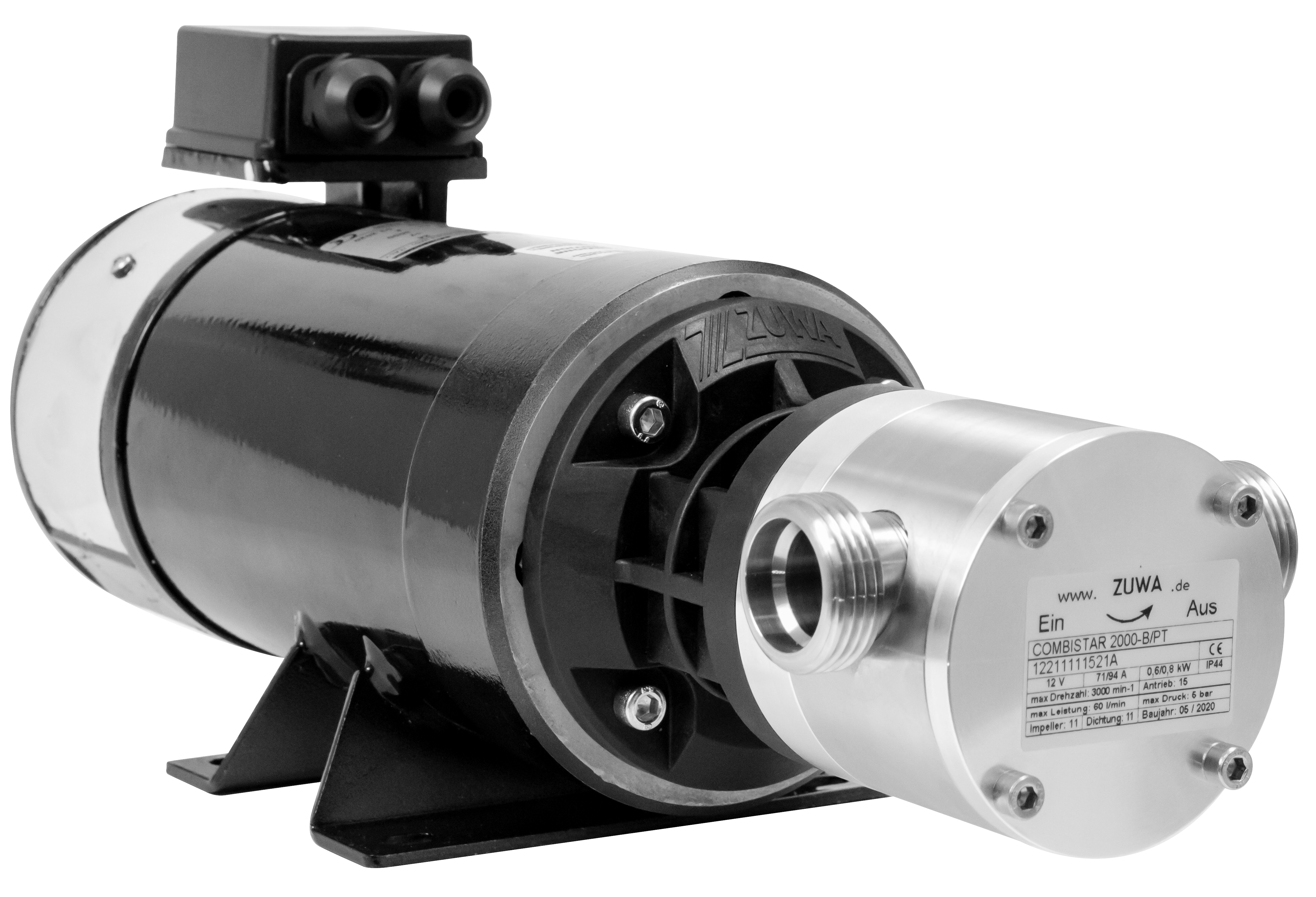

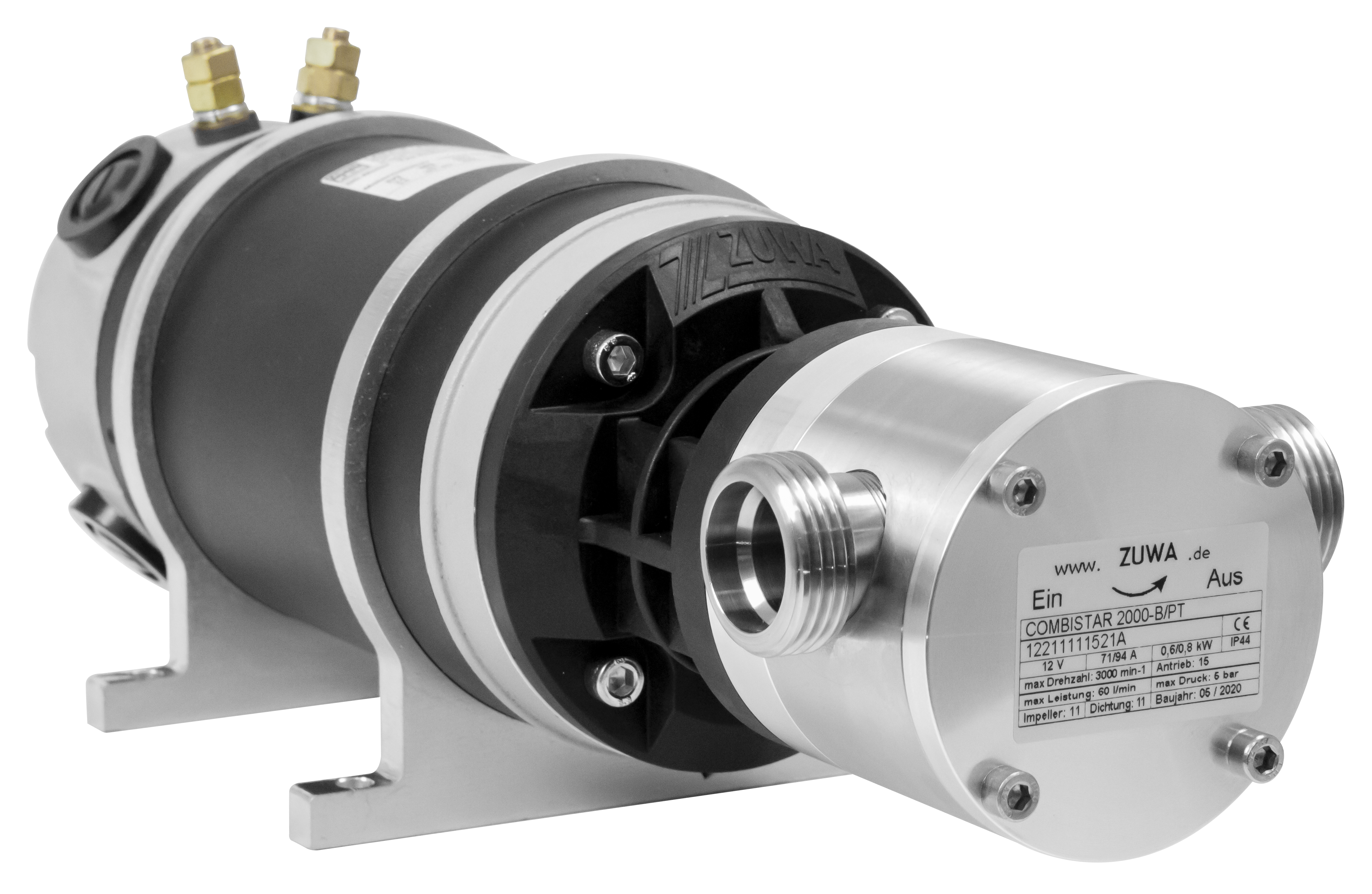

DC motors 12 V / 24 V

The ZUWA impeller pumps in the COMBISTAR series can also be operated with DC motors. Our quick-change pump carrier system is used for this purpose.

As a customer, you can choose from a wide range of DC motors depending on your application. Whether it's voltages (12 V, 24 V, 12/24 V), operating modes (S2, S1), or IP protection classes.

AC motors 230 V / 400 V and special voltages

Our pumps are available with various AC motors. We supply motors for 230 V and 400 V as standard.

These are also available with left/right rotation on request. In addition, we offer customer-specific special voltages, for example 220 V or 400 V, as well as versions for 60 Hz.

Drill pump

The drill pump as a universal tool for craftsmen.

Quick and easy to assemble and ready for use in no time.

Combistar drill pump

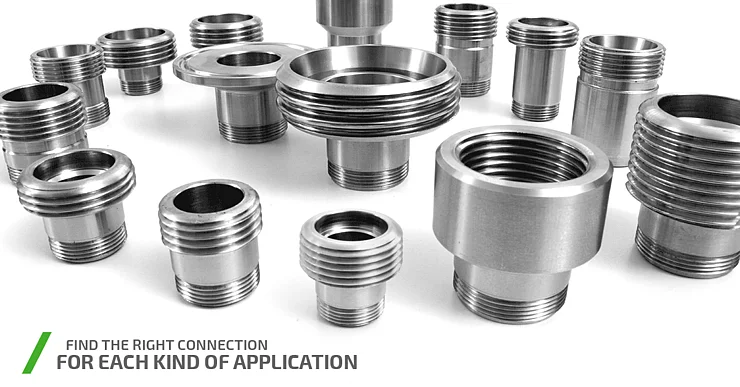

We offer different connections for our impeller pumps.

Consulting and service

Our team will be happy to assist you in selecting the right ZUWA pump for your application.

Please contact us at the following telephone number: +49 (0)8682 8934-0 or info@zuwa.de – we provide you with expert and personalized advice.

flow rate max. litres
15
60
15 60
max. pressure
3
5
3 5
Voltage (AC)
Voltage (DC)
Impeller material

COMBISTAR 2000-A, 1400 min-1, 230 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 12111116322

Impellerpump
flow rate max. litres 15 l/min
flow rate max. m³ 0,9 m³/h
max. pressure 4 bar
Inlet/outlet ¾" mt
Impeller Perbunan® (NBR) , Bush material Polyamid
Shaft sealing ring Perbunan® (NBR)
Material pump housing stainless steel 1.4404, aluminium AlMgSi1

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,37 kW, Rated current (AC) 3,2 A
Starting capacitor 40 µF, Operating capacitor 16 µF
rotation max. 1400 min-1
Material motorshaft 1.4104
Protection class IP55
Motor protection (thermal) 130
weight 9,4 kg

COMBISTAR 2000-A, 1400 min-1, 400 V

Impellerpumpe mit Motor, Kabel und Stecker
Impellerpumpe mit Motor, Kabel und Stecker

Art. Nr. 12111117322

Impellerpumpe
flow rate max. litres 15 l/min
flow rate max. m³ 0,9 m³/h
max. pressure 4 bar
Inlet/outlet ¾" mt
Impeller Perbunan® (NBR) , Bush material Polyamid
Shaft sealing ring Perbunan® (NBR)
Material pump housing stainless steel 1.4404, aluminium AlMgSi1

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 0,37 kW, Rated current (AC) 1,15 A
rotation max. 1400 min-1
Material motorshaft 1.4404
Protection class IP55
weight 9,8 kg

COMBISTAR 2000-A, 2800 min-1, 230 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 12111116321

Impellerpump
flow rate max. litres 30 l/min
flow rate max. m³ 1,8 m³/h
max. pressure 5 bar
Inlet/outlet ¾" mt
Impeller Perbunan® (NBR) , Bush material Polyamid
Shaft sealing ring Perbunan® (NBR)
Material pump housing stainless steel 1.4404, aluminium AlMgSi1

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,37 kW, Rated current (AC) 3,2 A
Starting capacitor 40 µF
Operating capacitor 20 µF
rotation max. 2800 min-1
Material motorshaft 1.4104
Protection class IP55
Motor protection (thermal) 130
weight 9,8 kg

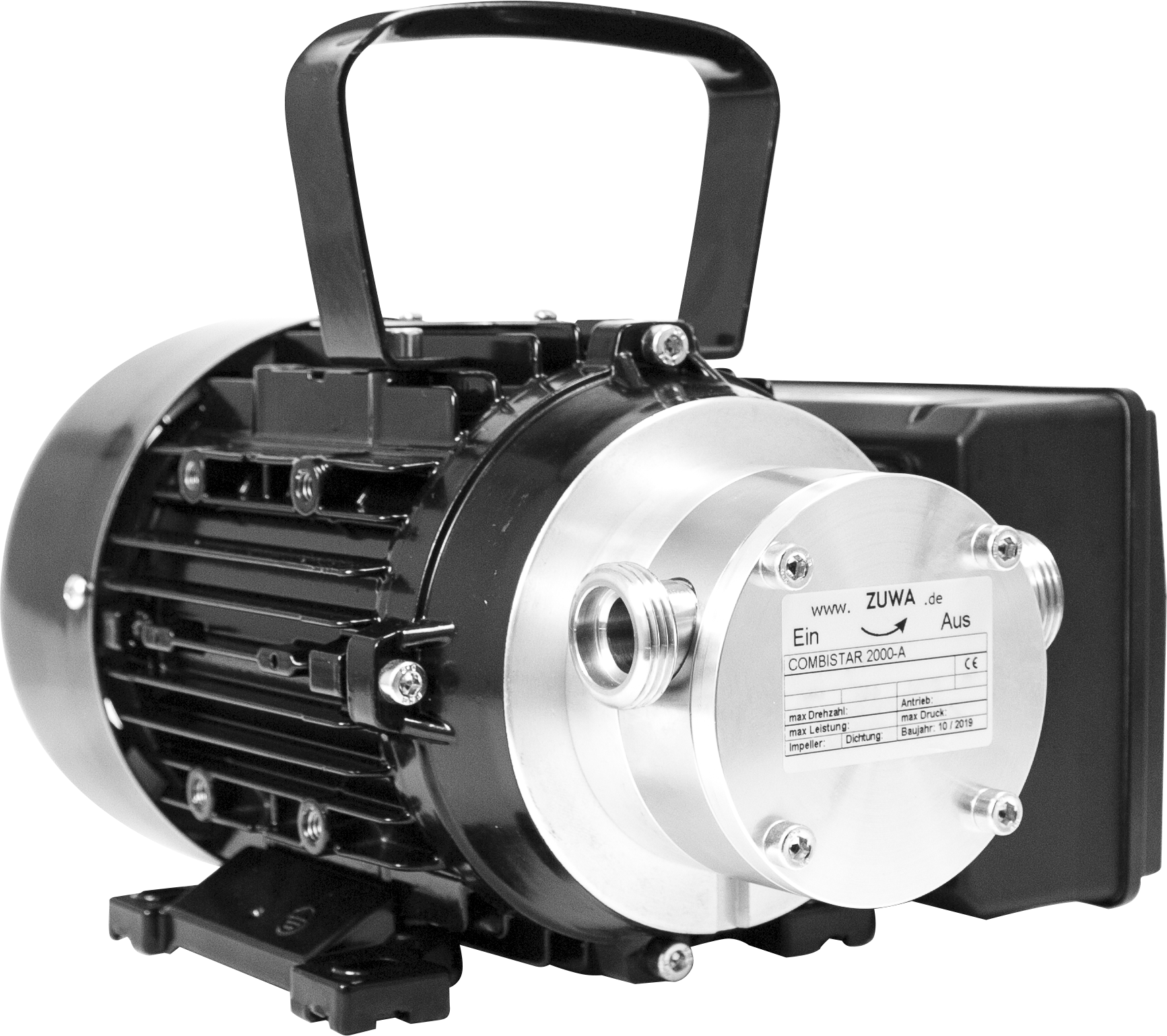

COMBISTAR 2000-A, 2800 min-1, 400 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 12111117321

Impellerpump
flow rate max. litres 30 l/min
flow rate max. m³ 1,8 m³/h
max. pressure 5 bar
Inlet/outlet ¾" mt
Impeller Perbunan® (NBR) , Bush material
Shaft sealing ring Perbunan® (NBR)
Material pump housing stainless steel 1.4404, aluminium AlMgSi1

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 0,37 kW, Rated current (AC) 1,1 A
rotation max. 2800 min-1
Material motorshaft 1.4104
Protection class IP55
weight 9,8 kg

COMBISTAR 2000-A, 2800 min-1, 400 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 12118117321

Impellerpump
flow rate max. litres 30 l/min
flow rate max. m³ 1,8 m³/h
max. pressure 5 bar
Inlet/outlet ¾" mt
Impeller Perbunan® (NBR) , Bush material stainless steel (1.4404)
Shaft sealing ring Perbunan® (NBR)
Material pump housing stainless steel 1.4404, aluminium AlMgSi1

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 0,37 kW, Rated current (AC) 1,1 A
rotation max. 2800 min-1
Material motorshaft 1.4104
Protection class IP55
weight 9,4 kg

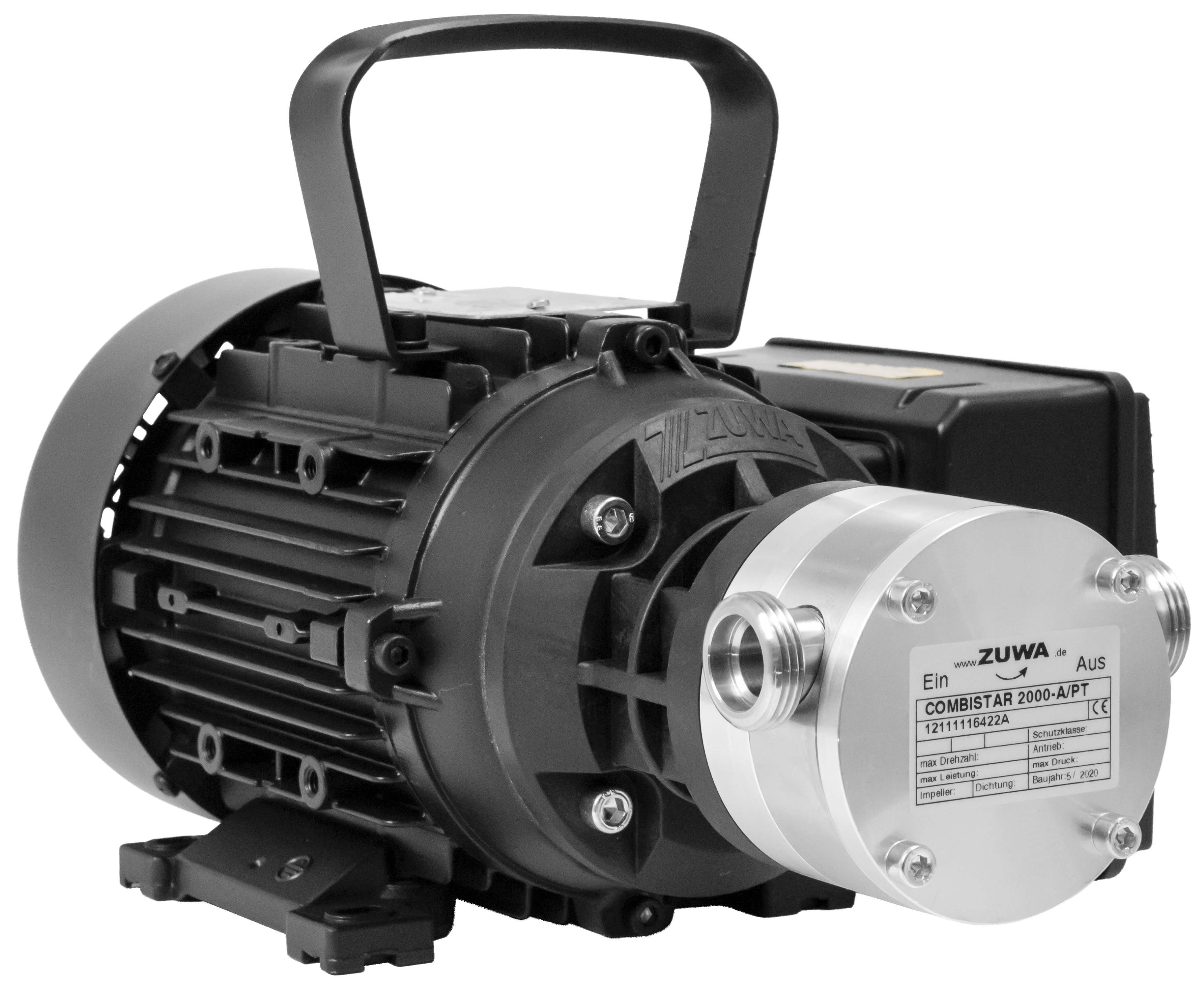

COMBISTAR 2000-A/PT, 1400 min-1, 230 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 12111116422A

Impellerpump
flow rate max. litres 15 l/min
flow rate max. m³ 0,9 m³/h
max. pressure 4 bar
Inlet/outlet ¾" mt
Impeller Perbunan® (NBR) , Bush material Polyamid
Shaft sealing ring Perbunan® (NBR)
Material pump housing stainless steel 1.4404, aluminium AlMgSi1
With pump carrier

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,37 kW, Rated current (AC) 3,2 A
Starting capacitor 40 µF, Operating capacitor 16 µF
rotation max. 1400 min-1
Material motorshaft 1.4104
Protection class IP55
weight 9,4 kg

COMBISTAR 2000-A/PT, 1400 min-1, 400 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 12111117422A

Impellerpump
flow rate max. litres 15 l/min
flow rate max. m³ 0,9 m³/h
max. pressure 4 bar
Inlet/outlet ¾" mt
Impeller Perbunan® (NBR) , Bush material Polyamid
Shaft sealing ring Perbunan® (NBR)
Material pump housing stainless steel 1.4404, aluminium AlMgSi1
With pump carrier

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 0,37 kW, Rated current (AC) 1,15 A
rotation max. 1400 min-1
Material motorshaft 1.4104
Protection class IP55
weight 9,4 kg

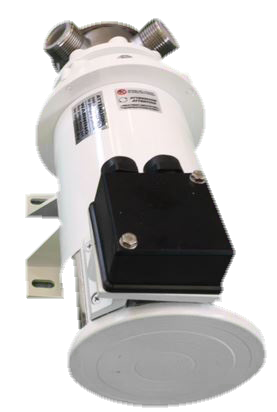

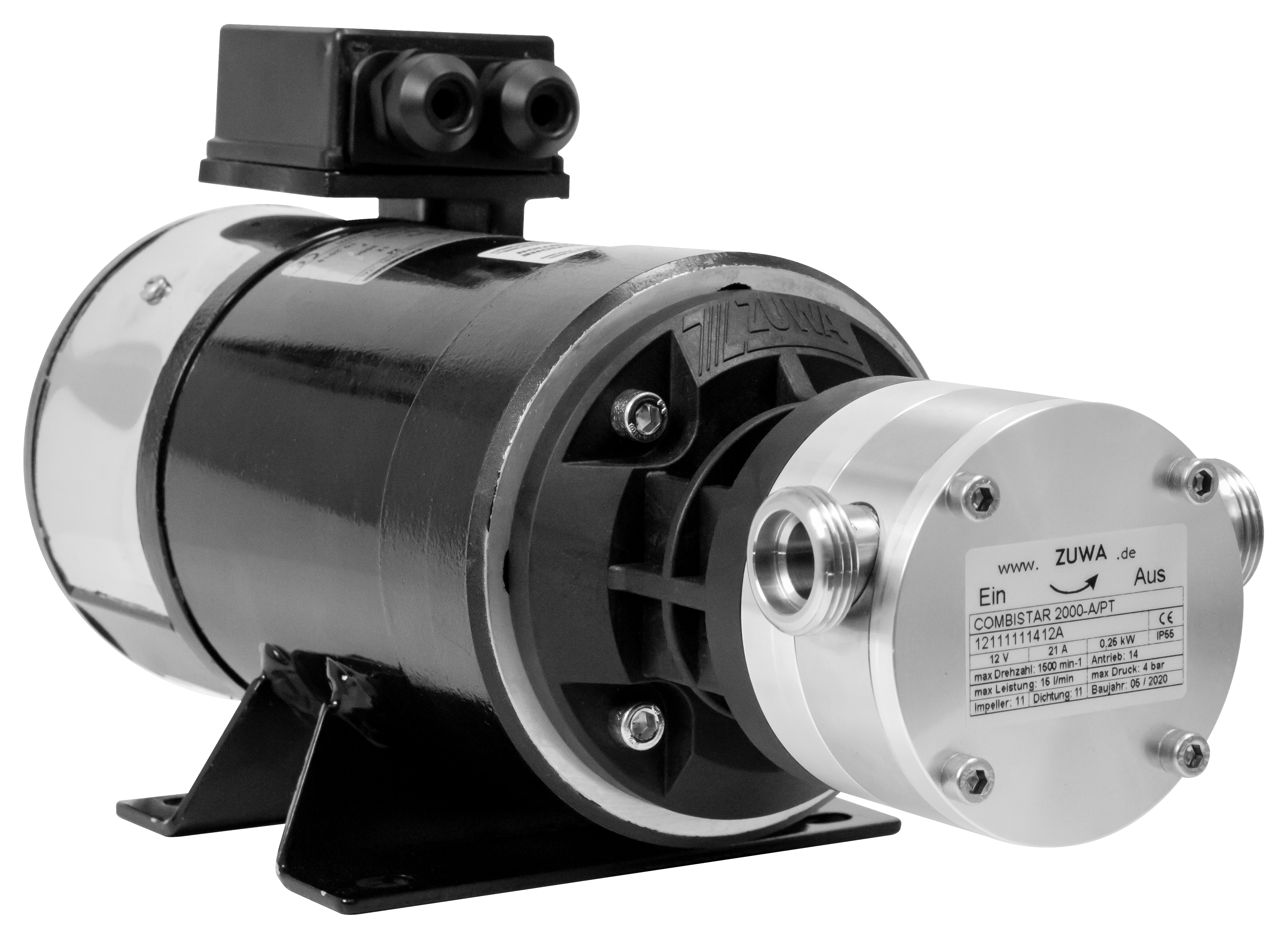

COMBISTAR 2000-A/PT, 1500 min-1, 12 V

Impellerpump with DC motor CEM
Impellerpump with DC motor CEM

Art. Nr. 12111111412A

Impellerpump
flow rate max. litres 15 l/min
flow rate max. m³ 0,9 m³/h
max. pressure 4 bar
Inlet/outlet ¾" mt
Impeller Perbunan® (NBR) , Bush material
Shaft sealing ring Perbunan® (NBR)
Material pump housing stainless steel 1.4404 / aluminium AlMgSi1
With pump carrier

Electric motor CEM
Voltage (DC) 12 V
Nominal power 0,25 kW
rotation max. 1500 min-1
Motorshaft N-WE 14x30mm
Protection class IP55 , Operating mode S1
Electrical connection Control board
Cable / plug Without cable and plug
Colour RAL 9005 black weight 10 kg

COMBISTAR 2000-A/PT, 1500 min-1, 24 V

Impellerpump with DC motor CEM
Impellerpump with DC motor CEM

Art. Nr. 12111112412A

Impellerpump
flow rate max. litres 15 l/min
flow rate max. m³ 0,9 m³/h
max. pressure 4 bar
Inlet/outlet ¾" mt
Impeller Perbunan® (NBR) , Bush material Polyamid
Shaft sealing ring Perbunan® (NBR)
Material pump housing stainless steel 1.4404 / aluminium AlMgSi1
With pump carrier

Electric motor CEM
Voltage (DC) 24 V
Nominal power 0,25 kW, Rated current (DC) 16 A
rotation max. 1500 min-1
Motorshaft N-WE 14x30mm
Protection class IP55 , Operating mode S1
Electrical connection Control board
Colour RAL 9005 black
weight 10 kg

COMBISTAR 2000-A/PT, 3000 min-1, 24 V

Impellerpump with DC motor CEM
Impellerpump with DC motor CEM

Art. Nr. 12111112411A

Impellerpump
flow rate max. litres 30 l/min
flow rate max. m³ 1,8 m³/h
max. pressure 5 bar
Inlet/outlet ¾" mt
Impeller Perbunan® (NBR) , Bush material
Shaft sealing ring Perbunan® (NBR)
Material pump housing stainless steel 1.4404 / aluminium AlMgSi1
With pump carrier

Electric motor CEM
Voltage (DC) 24 V
Nominal power 0,25 kW, Rated current (DC) 12 A
rotation max. 3000 min-1
Motorshaft N-WE 14x30mm
Protection class IP55 , Operating mode S1
Electrical connection Control board
Without cable and plug
Colour RAL 9005 black weight 10 kg

COMBISTAR 2000-B ,1400 min-1, 230 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 12211116332

Impellerpump Combistar 2000-B
flow rate max. litres 30 l/min
flow rate max. m³ 1,8 m³/h
rotation max. 1400 min-1
max. pressure 4 bar
Inlet/outlet 1" mt
Impeller Perbunan® (NBR) , Bush material Polyamid
Shaft sealing ring Perbunan® (NBR)
Material pump housing stainless steel 1.4404, aluminium AlMgSi1

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,55 kW, Rated current (AC) 3,8 A
Starting capacitor 40 µF
Operating capacitor 16 µF
rotation max. 1400 min-1
Material motorshaft 1.4404
Protection class IP55
Motor protection (thermal) 130
weight 10 kg

COMBISTAR 2000-B ,1400 min-1, 400 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 12211117332

Impellerpump Combistar 2000-B
flow rate max. litres 30 l/min
flow rate max. m³ 1,8 m³/h
max. pressure 4 bar
Inlet/outlet 1" mt
Impeller Perbunan® (NBR) , Bush material Polyamid
Shaft sealing ring Perbunan® (NBR)
Material pump housing stainless steel 1.4404, aluminium AlMgSi1

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 0,55 kW, Rated current (AC) 1,6 A
rotation max. 1400 min-1
Material motorshaft 1.4404
Protection class IP55
weight 10,3 kg

COMBISTAR 2000-B ,2800 min-1, 230 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 12211116331

Impellerpump Combistar 2000-B
flow rate max. litres 60 l/min
flow rate max. m³ 3,6 m³/h
max. pressure 5 bar
Inlet/outlet 1" mt
Impeller Perbunan® (NBR) , Bush material Polyamid
Shaft sealing ring Perbunan® (NBR)
Material pump housing stainless steel 1.4404, aluminium AlMgSi1

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,55 kW, Rated current (AC) 4,3 A
Starting capacitor 40 µF
Operating capacitor 20 µF
rotation max. 2800 min-1
Material motorshaft 1.4404
Protection class IP55
Motor protection (thermal) 130
weight 10 kg

COMBISTAR 2000-B, 2800 min-1, 400 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 12211117331

Impellerpumpe
flow rate max. litres 60 l/min
flow rate max. m³ 3,6 m³/h
max. pressure 5 bar
Inlet/outlet
Impeller Perbunan® (NBR) , Bush material Polyamid
Shaft sealing ring Perbunan® (NBR)
Material pump housing Edelstahl 1.4404, Aluminium AlMgSi1

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 0,55 kW, Rated current (AC) 1,4 A
rotation max. 2800 min-1
Material motorshaft 1.4104
Protection class IP55
weight 10,3 kg

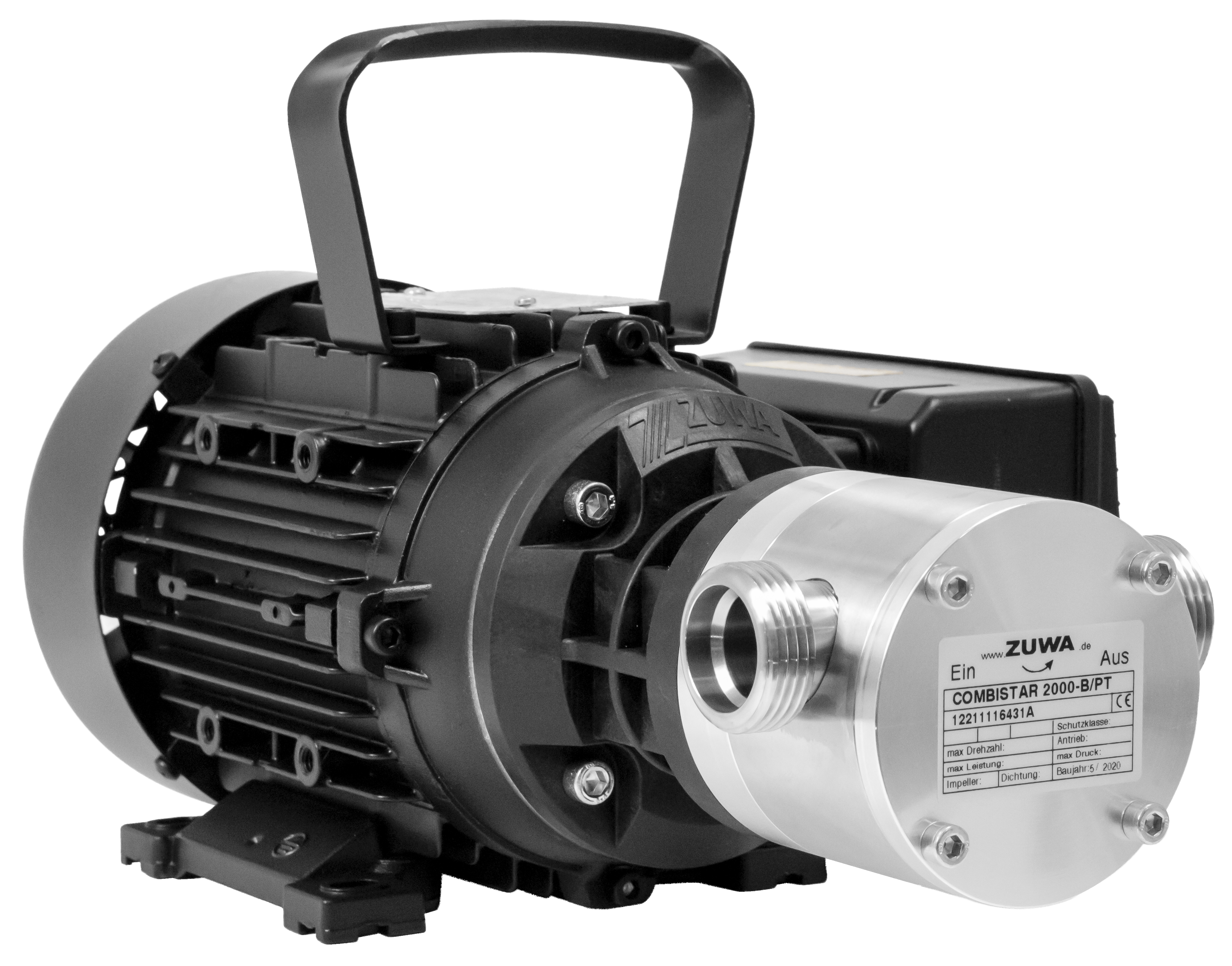

COMBISTAR 2000-B/PT, 1400 min-1, 230 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 12211116432A

Impellerpump Combistar 2000-B
flow rate max. litres 30 l/min
flow rate max. m³ 1,8 m³/h
max. pressure 4 bar
Inlet/outlet
Impeller Perbunan® (NBR) , Bush material Polyamid
Shaft sealing ring Perbunan® (NBR)
Material pump housing stainless steel 1.4404, aluminium AlMgSi1
With pump carrier

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,55 kW, Rated current (AC) 3,8 A
Starting capacitor 40 µF, Operating capacitor 16 µF
rotation max. 1400 min-1
Material motorshaft 1.4104
Protection class IP55
weight 10 kg

COMBISTAR 2000-B/PT, 1400 min-1, 400 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 12211117432A

Impellerpump Combistar 2000-B
flow rate max. litres 30 l/min
flow rate max. m³ 1,8 m³/h
max. pressure 4 bar
Inlet/outlet 1" mt
Impeller Perbunan® (NBR) , Bush material Polyamid
Shaft sealing ring Perbunan® (NBR)
Material pump housing stainless steel 1.4404, aluminium AlMgSi1
With pump carrier

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 0,55 kW, Rated current (AC) 1,1 A
rotation max. 1400 min-1
Material motorshaft 1.4104
Protection class IP55
weight 10 kg

COMBISTAR 2000-B/PT, 2800 min-1, 230 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 12211116431A

Impellerpump Combistar 2000-B
flow rate max. litres 60 l/min
flow rate max. m³ 3,6 m³/h
max. pressure 5 bar
Inlet/outlet 1" mt
Impeller Perbunan® (NBR) , Bush material Polyamid
Shaft sealing ring Perbunan® (NBR)
Material pump housing stainless steel 1.4404, aluminium AlMgSi1
With pump carrier

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,55 kW, Rated current (AC) 4 A
Starting capacitor 40 µF, Operating capacitor 20 µF
rotation max. 2800 min-1
Material motorshaft 1.4104
Protection class IP55
weight 10 kg

COMBISTAR 2000-B/PT, 2800 min-1, 400 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 12211117431A

Impellerpump Combistar 2000-B
flow rate max. litres 60 l/min
flow rate max. m³ 3,6 m³/h
max. pressure 5 bar
Inlet/outlet 1" mt
Impeller Perbunan® (NBR) , Bush material Polyamid
Shaft sealing ring Perbunan® (NBR)
Material pump housing stainless steel 1.4404, aluminium AlMgSi1
With pump carrier

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 0,55 kW, Rated current (AC) 1,4 A
rotation max. 2800 min-1
Material motorshaft 1.4104
Protection class IP55
weight 10 kg

COMBISTAR 2000-B/PT, 3000 min-1, 12 V

Impellerpump with DC motor KEB
Impellerpump with DC motor KEB

Art. Nr. 12211111531A

Impellerpump
flow rate max. litres 60 l/min
flow rate max. m³ 3,6 m³/h
max. pressure 5 bar
Inlet/outlet 1" mt
Impeller Perbunan® (NBR) , Bush material Polyamid
Shaft sealing ring Perbunan® (NBR)
Material pump housing stainless steel 1.4404, aluminium AlMgSi1
With pump carrier

Electric motor
Voltage (DC) 12 V
Nominal power 0,6/0,8 kW, Rated current (DC) 71/94 A
rotation max. 3000 min-1
Motorshaft N-WE 14x30
Protection class IP44 , Operating mode S2
Electrical connection Control board
weight 10,5 kg

COMBISTAR 2000-B/PT, 3000 min-1, 24 V

Impellerpump with DC motor Creusen
Impellerpump with DC motor Creusen

Art. Nr. 12211112421A

Impellerpump
flow rate max. litres 60 l/min
flow rate max. m³ 3,6 m³/h
max. pressure 5 bar
Inlet/outlet 1" mt
Impeller Perbunan® (NBR) , Bush material Polyamid
Shaft sealing ring Perbunan® (NBR)
Material pump housing stainless steel 1.4404, aluminium AlMgSi1
With pump carrier

Electric motor
Voltage (DC) 24 V
Nominal power 0,37 kW, Rated current (DC) 17 A
rotation max. 3000 min-1
Motorshaft N-WE 14x30
Protection class IP55 , Operating mode S1
Electrical connection Control board
weight 9,5 kg

COMBISTAR 2000-B/PT, GLRD, 1400 min-1, 230 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 12211256432A

Impellerpump
flow rate max. litres 30 l/min
flow rate max. m³ 1,8 m³/h
max. pressure 4 bar
Inlet/outlet
Impeller Perbunan® (NBR) , Bush material Polyamid
Mechanical seal Car/Cer/FKM
Material pump housing stainless steel 1.4404, aluminium AlMgSi1
With pump carrier

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,55 kW, Rated current (AC) 3,8 A
Starting capacitor 40 µF
Operating capacitor 16 µF
rotation max. 1400 min-1
Material motorshaft 1.4104
Protection class IP55
Motor protection (thermal) 130
weight 10 kg

COMBISTAR/CR 2000-A, 1400 min-1, 230 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 12148136322

Impellerpump
flow rate max. litres 15 l/min
flow rate max. m³ 0,9 m³/h
max. pressure 3 bar
Inlet/outlet ¾" mt
Impeller Neoprene® (CR) , Bush material stainless steel (1.4404)
Shaft sealing ring Viton® (FKM)
Material pump housing stainless steel 1.4404, aluminium AIMgSi1

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,37 kW, Rated current (AC) 3,2 A
Starting capacitor 40 µF, Operating capacitor 16 µF
rotation max. 1400 min-1
Material motorshaft 1.4104
Protection class IP55
Motor protection (thermal) 130
weight 9,4 kg

COMBISTAR/CR 2000-A/PT, 1400 min-1, 230 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 12148136422A

Impellerpump
flow rate max. litres 15 l/min
flow rate max. m³ 0,9 m³/h
max. pressure 3 bar
Inlet/outlet ¾" mt
Impeller Neoprene® (CR) , Bush material stainless steel (1.4404)
Shaft sealing ring Viton® (FKM)
Material pump housing stainless steel 1.4404, aluminium AlMgSi1
With pump carrier

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,37 kW, Rated current (AC) 3,2 A
Starting capacitor 40 µF
Operating capacitor 16 µF
rotation max. 1400 min-1
Material motorshaft 1.4104
Protection class IP55
Motor protection (thermal) yes
weight 10 kg

COMBISTAR/CR 2000-B, 1400 min-1, 230 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 12248136332

Impellerpump
flow rate max. litres 30 l/min
flow rate max. m³ 1,8 m³/h
max. pressure 3 bar
Inlet/outlet 1" mt
Impeller Neoprene® (CR) , Bush material stainless steel (1.4404)
Shaft sealing ring Viton® (FKM)
Material pump housing stainless steel 1.4404, aluminum AlMgSi1

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,55 kW, Rated current (AC) 3,8 A
Starting capacitor 40 µF, Operating capacitor 16 µF
rotation max. 1400 min-1
Material motorshaft 1.4404
Protection class IP55
weight 10 kg

COMBISTAR/E 2000-A, 2800 min-1, 230 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 12128126321

Impellerpump
flow rate max. litres 30 l/min
flow rate max. m³ 1,8 m³/h
max. pressure 3 bar
Inlet/outlet ¾" mt
Impeller EPDM , Bush material stainless steel (1.4404)
Shaft sealing ring EPDM
Material pump housing stainless steel 1.4404, aluminium AlMgSi1

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,37 kW, Rated current (AC) 3,2 A
Starting capacitor 40 µF
Operating capacitor 20 µF
rotation max. 2800 min-1
Material motorshaft 1.4104
Protection class IP55
Motor protection (thermal) 130
weight 9,4 kg

COMBISTAR/E 2000-A, 2800 min-1, 400 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 12128127321

flow rate max. litres 30 l/min
flow rate max. m³ 1,8 m³/h
max. pressure 3 bar
Inlet/outlet ¾" mt
Impeller EPDM , Bush material stainless steel (1.4404)
Shaft sealing ring EPDM
Material pump housing stainless steel 1.4404, aluminium AlMgSi1

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 0,37 kW, Rated current (AC) 1,1 A
rotation max. 2800 min-1
Material motorshaft 1.4104
Protection class IP55
weight 9,4 kg

COMBISTAR/E 2000-A/PT, 1400 min-1, 400 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 12128127422A

Impellerpump
flow rate max. litres 15 l/min
flow rate max. m³ 0,9 m³/h
max. pressure 3 bar
Inlet/outlet ¾" mt
Impeller EPDM , Bush material stainless steel (1.4404)
Shaft sealing ring EPDM
Material pump housing stainless steel 1.4404, aluminium AlMgSi1
With pump arrier

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 0,37 kW, Rated current (AC) 1,15 A
rotation max. 1400 min-1
Material motorshaft 1.4104
Protection class IP55
weight 9,4 kg

COMBISTAR/E 2000-A/PT, 1400 min-1, 400 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 12121127422A

Impellerpump
flow rate max. litres 15 l/min
flow rate max. m³ 0,9 m³/h
max. pressure 3 bar
Inlet/outlet ¾" mt
Impeller EPDM , Bush material Polyamid
Shaft sealing ring EPDM
Material pump housing stainless steel 1.4404, aluminium AlMgSi1
Mit Pumpenträger

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 0,37 kW, Rated current (AC) 1,15 A
rotation max. 1400 min-1
Material motorshaft 1.4104
Protection class IP55
weight 9,4 kg

COMBISTAR/E 2000-A/PT, 2800 min-1, 230 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 12121126421A

Impellerpump
flow rate max. litres 30 l/min
flow rate max. m³ 1,8 m³/h
max. pressure 3 bar
Inlet/outlet ¾" mt
Impeller EPDM , Bush material Polyamid
Shaft sealing ring EPDM®
Material pump housing stainless steel 1.4404 / aluminium AlMgSi1
With pump carrier

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,37 kW, Rated current (AC) 3,2 A
Starting capacitor 40 µF
Operating capacitor 12,5 µF
rotation max. 2800 min-1
Material motorshaft 1.4104
Protection class IP55
Motor protection (thermal) yes
weight 10 kg

COMBISTAR/E 2000-B, 2800 min-1, 230 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 12228126331

Impellerpump
flow rate max. litres 60 l/min
flow rate max. m³ 3,6 m³/h
max. pressure 3 bar
Inlet/outlet 1" mt
Impeller EPDM , Bush material stainless steel (1.4404)
Shaft sealing ring EPDM
Material pump housing stainless steel 1.4404, aluminium AlMgSi1

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,55 kW, Rated current (AC) 4,3 A
Starting capacitor 40 µF, Operating capacitor 20 µF
rotation max. 2800 min-1
Material motorshaft 1.4404
Protection class IP55
Motor protection (thermal) 130
weight 10 kg

COMBISTAR/E 2000-B/PT, 1400 min-1, 230 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 12221126432A

Impellerpump
flow rate max. litres 30 l/min
flow rate max. m³ 1,8 m³/h
max. pressure 3 bar
Impeller EPDM , Bush material Polyamid
Shaft sealing ring EPDM®
Material pump housing stainless steell 1.4404, aluminium AIMgSi1
With pump carrier

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,55 kW, Rated current (AC) 3,8 A
Starting capacitor 40 µF
Operating capacitor 16 µF
rotation max. 1400 min-1
Material motorshaft 1.4104
Protection class IP55
weight 10 kg

COMBISTAR/E 2000-B/PT, 1400 min-1, 400 V

Impellerpump mith motor, cabel and plug
Impellerpump mith motor, cabel and plug

Art. Nr. 12221127432A

Impellerpump
flow rate max. litres 30 l/min
flow rate max. m³ 1,8 m³/h
max. pressure 3 bar
Inlet/outlet 1" mt
Impeller EPDM, Bush material Polyamid
Shaft sealing ring EPDM
Material pump housing stainless steel 1.4404, aluminium AlMgSi1
With pump carrier

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 0,55 kW, Rated current (AC) 1,1 A
rotation max. 1400 min-1
Material motorshaft 1.4104
Protection class IP55
weight 10 kg

COMBISTAR/E 2000-B/PT, 2800 min-1, 230 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 12221126431A

Impellerpump
flow rate max. litres 60 l/min
flow rate max. m³ 3,6 m³/h
max. pressure 3 bar
Inlet/outlet
Impeller EPDM , Bush material Polyamid
Shaft sealing ring EPDM
Material pump housing stainless steel 1.4404, aluminium AlMgSi1
With pump carrier

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,55 kW, Rated current (AC) 4 A
Starting capacitor 40 µF, Operating capacitor 20 µF
rotation max. 2800 min-1
Material motorshaft 1.4104
Protection class IP55
weight 10 kg

COMBISTAR/K 2000-A, 1400 min-1, 230 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 12191116322

Impellerpump
flow rate max. litres 15 l/min
flow rate max. m³ 0,9 m³/h
max. pressure 4 bar
Max. fluid temperature 60 °C
Inlet/outlet ¾" aG
Impeller TPU , Bush material polyamide bush
Shaft sealing ring Perbunan® (NBR)
Material pump housing stainless steell 1.4404, aluminium AIMgSi1

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,37 kW, Rated current (AC) 3,2 A
Starting capacitor 40 µF
Operating capacitor 16 µF
rotation max. 1400 min-1
Material motorshaft 1.4104
Protection class IP55
Motor protection (thermal) 130
weight 9,8 kg

COMBISTAR/K 2000-A, 1400 min-1, 400 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 12191137322

Impellerpump
flow rate max. litres 15 l/min
flow rate max. m³ 0,9 m³/h
max. pressure 4 bar
Inlet/outlet ¾" mt
Impeller TPU , Bush material polyamide bush
Shaft sealing ring Viton® (FKM)
Max. fluid temperature 60 °C
Material pump housing stainless steell 1.4404, aluminium AlMgSi1

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 0,37 kW, Rated current (AC) 1,15 A
rotation max. 1400 min-1
Material motorshaft 1.4404
Protection class IP55
weight 9,8 kg

COMBISTAR/K 2000-A, 2800 min-1, 230 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 12191136321

Impellerpump
flow rate max. litres 30 l/min
flow rate max. m³ 1,8 m³/h
max. pressure 5 bar
Inlet/outlet ¾" mt
Impeller TPU , Bush material polyamide bush
Shaft sealing ring Viton® (FKM)
Max. fluid temperature 60 °C
Material pump housing stainless steell 1.4404, aluminium AIMgSi1

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,37 kW,
Rated current (AC) 3,2 A
Starting capacitor 40 µF
Operating capacitor 20 µF
rotation max. 2800 min-1
Material motorshaft 1.4104
Protection class IP55
Motor protection (thermal) 130
weight 9,8 kg

COMBISTAR/K 2000-A, 2800 min-1, 230 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 12191116321

Impellerpump
flow rate max. litres 30 l/min
flow rate max. m³ 1,8 m³/h
max. pressure 5 bar
Inlet/outlet ¾" mt
Impeller TPU , Bush material polyamide bush
Shaft sealing ring Perbunan® (NBR)
Max. fluid temperature 60 °C
Material pump housing stainless steell 1.4404, aluminium AIMgSi1

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,37 kW,
Rated current (AC) 3,2 A
Starting capacitor 40 µF
Operating capacitor 20 µF
rotation max. 2800 min-1
Material motorshaft 1.4104
Protection class IP55
Motor protection (thermal) 130
weight 9,8 kg

COMBISTAR/K 2000-A, 2800 min-1, 400 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 12191137321

Impellerpump
flow rate max. litres 30 l/min
flow rate max. m³ 1,8 m³/h
max. pressure 5 bar
Inlet/outlet ¾" mt
Impeller TPU , Bush material polyamide bush
Shaft sealing ring Viton® (FKM)
Max. fluid temperature 60 °C
Material pump housing stainless steell 1.4404, aluminium AIMgSi1

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 0,37 kW, Rated current (AC) 1,1 A
rotation max. 2800 min-1
Material motorshaft 1.4104
Protection class IP55
weight 9,8 kg

COMBISTAR/K 2000-A, 2800 min-1, 400 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 12191117321

Impellerpump
flow rate max. litres 30 l/min
flow rate max. m³ 1,8 m³/h
max. pressure 5 bar
Inlet/outlet ¾" mt
Impeller TPU , Bush material polyamide bush
Shaft sealing ring Perbunan® (NBR)
Max. fluid temperature 60 °C
Material pump housing stainless steell 1.4404, aluminium AIMgSi1

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 0,37 kW, Rated current (AC) 1,1 A
rotation max. 2800 min-1
Material motorshaft 1.4104
Protection class IP55
weight 9,8 kg

COMBISTAR/K 2000-B , 1400 min-1, 400 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 12291117332

Impellerpump
flow rate max. litres 30 l/min
flow rate max. m³ 1,8 m³/h
max. pressure 4 bar
Inlet/outlet
Impeller TPU , Bush material polyamide bush
Shaft sealing ring Perbunan® (NBR)
Max. fluid temperature 60 °C
Material pump housing stainless steel 1.4404, aluminium AlMgSi1

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 0,55 kW, Rated current (AC) 1,6 A
rotation max. 1400 min-1
Material motorshaft 1.4404
Protection class IP55
weight 10,3 kg

COMBISTAR/K 2000-B ,1400 min-1, 230 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 12291136332

Impellerpump
flow rate max. litres 30 l/min
flow rate max. m³ 1,8 m³/h
max. pressure 4 bar
Inlet/outlet 1" mt
Impeller TPU , Buchse polyamide bush
Shaft sealing ring Viton® (FKM)
Max. fluid temperature 60 °C
Material pump housing stainless steel 1.4404, aluminium AlMgSi1

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,55 kW, Rated current (AC) 3,8 A
Starting capacitor 40 µF,
Operating capacitor 16 µF
rotation max. 1400 min-1
Material motorshaft 1.4404
Protection class IP55
Motor protection (thermal) 130
weight 10,3 kg

COMBISTAR/K 2000-B ,1400 min-1, 230 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 12291116332

Impellerpump
flow rate max. litres 30 l/min
flow rate max. m³ 1,8 m³/h
max. pressure 4 bar
Inlet/outlet 1" mt
Impeller TPU , Buchse polyamide bush
Shaft sealing ring Perbunan® (NBR)
Max. fluid temperature 60 °C
Material pump housing stainless steel 1.4404, aluminium AlMgSi1

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,55 kW, Rated current (AC) 3,8 A
Starting capacitor 40 µF,
Operating capacitor 16 µF
rotation max. 1400 min-1
Material motorshaft 1.4404
Protection class IP55
Motor protection (thermal) 130
weight 10,3 kg

COMBISTAR/K 2000-B ,2800 min-1, 400 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 12291137331

Impellerpump
flow rate max. litres 60 l/min
flow rate max. m³ 3,6 m³/h
max. pressure 5 bar
Inlet/outlet 1" mt
Impeller TPU , Bush material polyamide bush
Shaft sealing ring Viton® (FKM)
Max. fluid temperature 60 °C
Material pump housing stainless steel 1.4404, aluminium AlMgSi1

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 0,55 kW, Rated current (AC) 1,4 A
rotation max. 2800 min-1
Material motorshaft 1.4104
Protection class IP55
weight 10,3 kg

COMBISTAR/K 2000-B ,2800 min-1, 400 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 12291117331

Impellerpump
flow rate max. litres 60 l/min
flow rate max. m³ 3,6 m³/h
max. pressure 5 bar
Inlet/outlet 1" mt
Impeller TPU , Bush material polyamide bush
Shaft sealing ring Perbunan® (NBR)
Max. fluid temperature 60 °C
Material pump housing stainless steel 1.4404, aluminium AlMgSi1

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 0,55 kW, Rated current (AC) 1,4 A
rotation max. 2800 min-1
Material motorshaft 1.4104
Protection class IP55
weight 10,3 kg

COMBISTAR/K 2000-B, 2800, 230 Volt

Impeller pump with cable and plug
Impeller pump with cable and plug

Art. Nr. 12291136331

Motor: 230 V, 50 Hz, 4,3 A
0,55 kW, 2730 r/min; IP: 55
Pump: max. 60 litre/min., max. 3 bar
Connections 1" m.th.
Impeller TPU, shaft sealing ring
made of Viton
Pump housing Stainless steel /
Aluminium
Pump is directly flanged to the
motor shaft
max. fluid temperature 60°C

COMBISTAR/K 2000-B/PT, 3000 min-1, 24 V

Impellerpump with DC motor CEM
Impellerpump with DC motor CEM

Art. Nr. 12291112421A

Impellerpump
flow rate max. litres 60 l/min
flow rate max. m³ 3,6 m³/h
max. pressure 5 bar
Inlet/outlet 1" mt
Impeller thermoplastic (no bi-directional use) , Bush material polyamide bush
Shaft sealing ring Perbunan® (NBR)
Temperature max. 60 °C
Material pump housing stainless steel 1.4404, aluminium AIMgSi1
With pump carrier

Electric motor CEM
Voltage (DC) 24 V
Nominal power 0,37 kW, Rated current (DC) 17 A
rotation max. 3000 min-1
Motorshaft N-WE 14x30mm
Protection class IP55 , Operating mode S1
Electrical connection Control board
weight 10,5 kg

COMBISTAR/V 2000-A, 1400 min-1, 230 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 12131136322

Impellerpump
flow rate max. litres 15 l/min
flow rate max. m³ 0,9 m³/h
max. pressure 3 bar
Inlet/outlet ¾" mt
Impeller Viton® (FKM) , Bush material Polyamid
Shaft sealing ring Viton® (FKM)
Material pump housing stainless steel 1.4404, aluminium AIMgSi1

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,37 kW, Rated current (AC) 3,2 A
Starting capacitor 40 µF
Operating capacitor 16 µF
rotation max. 1400 min-1
Material motorshaft 1.4104
Protection class IP55
Motor protection (thermal) 130
weight 9,8 kg

COMBISTAR/V 2000-A, 1400 min-1, 400 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 12131137322

Impellerpump
flow rate max. litres 15 l/min
flow rate max. m³ 0,9 m³/h
max. pressure 3 bar
Inlet/outlet ¾" mt
Impeller Viton® (FKM) , Bush material
Shaft sealing ring Viton® (FKM)
Material pump housing stainless steel 1.4404, aluminium AIMgSi1

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 0,37 kW, Rated current (AC) 1,15 A
rotation max. 1400 min-1
Material motorshaft 1.4404
Protection class IP55
weight 9,8 kg

COMBISTAR/V 2000-A, 2800 min-1, 230 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 12131136321

Impellerpump
flow rate max. litres 30 l/min
flow rate max. m³ 1,8 m³/h
max. pressure 3 bar
Inlet/outlet ¾" mt
Impeller Viton® (FKM) , Bush material Polyamid
Shaft sealing ring Viton® (FKM)
Material pump housing stainless steel 1.4404, aluminium AIMgSi1

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,37 kW, Rated current (AC) 3,2 A
Starting capacitor 40 µF
Operating capacitor 20 µF
rotation max. 2800 min-1
Material motorshaft 1.4104
Protection class IP55
Motor protection (thermal) 130
weight 9,8 kg

COMBISTAR/V 2000-A, 2800 min-1, 400 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 12131137321

Impellerpump
flow rate max. litres 30 l/min
flow rate max. m³ 1,8 m³/h
max. pressure 3 bar
Inlet/outlet ¾" mt
Impeller Viton® (FKM) , Bush material
Shaft sealing ring Viton® (FKM)
Material pump housing stainless steel 1.4404, aluminium AIMgSi1

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 0,37 kW, Rated current (AC) 1,1 A
rotation max. 2800 min-1
Material motorshaft 1.4104
Protection class IP55
weight 9,8 kg

COMBISTAR/V 2000-A/PT, 1400 min-1, 230 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 12131136422A

Impellerpump
flow rate max. litres 15 l/min
flow rate max. m³ 0,9 m³/h
max. pressure 3 bar
Inlet/outlet ¾" mt
Impeller Viton® (FKM) , Bush material Polyamid
Shaft sealing ring Viton® (FKM)
Material pump housing stainless steel 1.4404, aluminium AIMgSi1
With pump carrier

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,37 kWRated current (AC) 3,2 A
Starting capacitor 40 µF, Operating capacitor 16 µF
rotation max. 1400 min-1
Material motorshaft 1.4104
Protection class IP55
weight 9,4 kg

COMBISTAR/V 2000-A/PT, 1500 min-1, 12 V

Impellerpump with DC motor CEM
Impellerpump with DC motor CEM

Art. Nr. 12138131412A

Impellerpump
flow rate max. litres 15 l/min
flow rate max. m³ 0,9 m³/h
max. pressure 3 bar
Inlet/outlet ¾" mt
Impeller Viton® (FKM) , Bush material stainless steel (1.4404)
Shaft sealing ring Viton® (FKM)
Material pump housing stainless steel 1.4404, aluminium AlMgSi1
With pump carrier

Electric motor CEM
Voltage (DC) 12 V
Nominal power 0,25 kW
rotation max. 1500 min-1
Motorshaft N-WE 14x30mm
Protection class IP55 , Operating mode S1
Electrical connection Control board
Without cable and plug
Colour RAL 9005 black
weight 10 kg

COMBISTAR/V 2000-A/PT, 1500 min-1, 12 V

Impellerpump with DC motor CEM
Impellerpump with DC motor CEM

Art. Nr. 12131131412A

Impellerpump
flow rate max. litres 15 l/min
flow rate max. m³ 0,9 m³/h
max. pressure 3 bar
Inlet/outlet ¾" mt
Impeller Viton® (FKM) , Bush material Polyamid
Shaft sealing ring Viton® (FKM)
Material pump housing stainless steel 1.4404, aluminium AlMgSi1
With pump carrier

Electric motor CEM
Voltage (DC) 12 V
Nominal power 0,25 kW
rotation max. 1500 min-1
Motorshaft N-WE 14x30mm
Protection class IP55 , Operating mode S1
Electrical connection Control board
Without cable and plug
Colour RAL 9005 black
weight 10 kg

COMBISTAR/V 2000-A/PT, 1500 min-1, 24 V

Impellerpump with DC motor CEM
Impellerpump with DC motor CEM

Art. Nr. 12138132412A

Impellerpump
flow rate max. litres 15 l/min
flow rate max. m³ 0,9 m³/h
max. pressure 3 bar
Inlet/outlet ¾" mt
Impeller Viton® (FKM) , Bush material stainless steel (1.4404)
Shaft sealing ring Viton® (FKM)
Material pump housing stainless steel 1.4404, aluminium AlMgSi1
With pump carrier

Electric motor
Voltage (DC) 24 V, Rated current (DC) 16 A
rotation max. 1500 min-1
Motorshaft N-WE 14x30mm
Protection class IP55 , Operating mode S1
Electrical connection Control board
Colour RAL 9005 black
weight 10 kg

COMBISTAR/V 2000-A/PT, 1500 min-1, 24 V

Impellerpump with DC motor CEM
Impellerpump with DC motor CEM

Art. Nr. 12131132412A

Impellerpump
flow rate max. litres 15 l/min
flow rate max. m³ 0,9 m³/h
max. pressure 3 bar
Inlet/outlet ¾" mt
Impeller Viton® (FKM) , Bush material Polyamid
Shaft sealing ring Viton® (FKM)
Material pump housing stainless steel 1.4404, aluminium AlMgSi1
With pump carrier

Electric motor CEM
Voltage (DC) 24 V, Rated current (DC) 16 A
rotation max. 1500 min-1
Motorshaft N-WE 14x30mm
Protection class IP55 , Operating mode S1
Electrical connection Control board
Colour RAL 9005 black
weight 10 kg

COMBISTAR/V 2000-A/PT, 2800 min-1, 400 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 12131137421A

Impellerpump
flow rate max. litres 30 l/min
flow rate max. m³ 1,8 m³/h
max. pressure 3 bar
Inlet/outlet ¾" mt
Impeller Viton® (FKM) , Bush material Polyamid
Shaft sealing ring Viton® (FKM)
Material pump housing stainless steel 1.4404, aluminium AIMgSi1
With pump carrier

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 0,37 kW, Rated current (AC) 1,1 A
rotation max. 2800 min-1
Material motorshaft 1.4104
Protection class IP55
weight 9,4 kg

COMBISTAR/V 2000-A/PT, 3000 min-1, 24 V

Impellerpump with DC motor CEM
Impellerpump with DC motor CEM

Art. Nr. 12138132411A

Impellerpump
flow rate max. litres 30 l/min
flow rate max. m³ 1,8 m³/h
max. pressure 3 bar
Inlet/outlet ¾" mt
Impeller Viton® (FKM) , Bush material stainless steel (1.4404)
Shaft sealing ring Viton® (FKM)
Material pump housing stainless steel 1.4404, aluminium AlMgSi1
With pump carrier

Electric motor CEM
Voltage (DC) 24 V
Nominal power 0,25 kW, Rated current (DC) 12 A
rotation max. 3000 min-1
Motorshaft N-WE 14x30mm
Protection class IP55 , Operating mode S1
Electrical connection Control board
Without cable and plug
Colour RAL 9005 black
weight 10 kg

COMBISTAR/V 2000-A/PT, 3000 min-1, 24 V

Impellerpump with DC motor CEM
Impellerpump with DC motor CEM

Art. Nr. 12131132411A

Impellerpump
flow rate max. litres 30 l/min
flow rate max. m³ 1,8 m³/h
max. pressure 3 bar
Inlet/outlet ¾" mt
Impeller Viton® (FKM) , Bush material Polyamid
Shaft sealing ring Viton® (FKM)
Material pump housing stainless steel 1.4404, aluminium AlMgSi1
With pump carrier

Electric motor CEM
Voltage (DC) 24 V
Nominal power 0,25 kW, Rated current (DC) 12 A
rotation max. 3000 min-1
Motorshaft N-WE 14x30mm
Protection class IP55 , Operating mode S1
Electrical connection Control board
Without cable and plug
Colour RAL 9005 black
weight 10 kg

COMBISTAR/V 2000-B ,1400 min-1, 230 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 12231136332

Impellerpump
flow rate max. litres 30 l/min
flow rate max. m³ 1,8 m³/h
max. pressure 3 bar
Inlet/outlet 1" mt
Impeller Viton® (FKM) , Bush material Polyamid
Shaft sealing ring Viton® (FKM)
Material pump housing stainless steel 1.4404, aluminium AlMgSi1

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,55 kW, Rated current (AC) 3,8 A
Starting capacitor 40 µF
Operating capacitor 16 µF
rotation max. 1400 min-1
Material motorshaft 1.4404
Protection class IP55
Motor protection (thermal) 130
weight 10,3 kg

COMBISTAR/V 2000-B ,1400 min-1, 400 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 12238137332

Impellerpump
flow rate max. litres 30 l/min
flow rate max. m³ 1,8 m³/h
max. pressure 3 bar
Inlet/outlet 1" mt
Impeller Viton® (FKM) , Bush material stainless steel (1.4404)
Shaft sealing ring Viton® (FKM)
Material pump housing stainless steel 1.4404, aluminium AlMgSi1

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 0,55 kW, Rated current (AC) 1,6 A
rotation max. 1400 min-1
Material motorshaft 1.4404
Protection class IP55
weight 10 kg

COMBISTAR/V 2000-B ,2800 min-1, 230 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 12238136331

Impellerpump
flow rate max. litres 60 l/min
flow rate max. m³ 3,6 m³/h
max. pressure 3 bar
Inlet/outlet 1" mt
Impeller Viton® (FKM) , Bush material stainless steel (1.4404)
Shaft sealing ring Viton® (FKM)
Material pump housing stainless steel 1.4404, aluminium AlMgSi1

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,55 kW, Rated current (AC) 4,3 A
Starting capacitor 40 µF
Operating capacitor 20 µF
rotation max. 2800 min-1
Material motorshaft 1.4404
Protection class IP55
Motor protection (thermal) 130
weight 10,3 kg

COMBISTAR/V 2000-B ,2800 min-1, 400 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 12238137331

Impellerpump
flow rate max. litres 60 l/min
flow rate max. m³ 3,6 m³/h
max. pressure 3 bar
Inlet/outlet 1" mt
Impeller Viton® (FKM) , Buchse stainless steel (1.4404)
Shaft sealing ring Viton® (FKM)
Material pump housing stainless steel 1.4404, aluminium AlMgSi1

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 0,55 kW, Rated current (AC) 1,4 A
rotation max. 2800 min-1
Protection class IP55
Material motorshaft 1.4104
weight 10 kg

COMBISTAR/V 2000-B, 1400 min-1, 230 Volt

Impeller pump with cable and plug
Impeller pump with cable and plug

Art. Nr. 12238136332

Motor: 230 V, 50 Hz, 4,35 A
0,55Kw, 1350 r/min, IP: 55
Pump: max. 30 litre/min., max. 3 bar
Connections 1" m.th.
Impeller and Shaft sealing ring Viton®
Pump housing Stainless steel/Aluminium
Pump is directly flanged on the motor shaft

COMBISTAR/V 2000-B, 2800 min-1, 230 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 12231136331

Impellerpump
flow rate max. litres 60 l/min
flow rate max. m³ 3,6 m³/h
max. pressure 3 bar
Inlet/outlet 1" mt
Impeller Viton® (FKM) , Bush material Polyamid
Shaft sealing ring Viton® (FKM)
Material pump housing stainless steel 1.4404, aluminium AlMgSi1

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,55 kW, Rated current (AC) 4,3 A
Starting capacitor 40 µF
Operating capacitor 20 µF
rotation max. 2800 min-1
Material motorshaft 1.4404
Protection class IP55
Motor protection (thermal) 130
weight 10,3 kg

COMBISTAR/V 2000-B/PT, 2800 min-1, 230 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 12238136431A

Impellerpump
flow rate max. litres 60 l/min
flow rate max. m³ 3,6 m³/h
max. pressure 3 bar
Inlet/outlet
Impeller Viton® (FKM) , Bush material stainless steel (1.4404)
Shaft sealing ring Viton® (FKM)
Material pump housing stainless steel 1.4404 / aluminium AIMgSi1
With pump carrier

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,55 kW, Rated current (AC) 4 A
Starting capacitor 40 µF
Operating capacitor 20 µF
rotation max. 2800 min-1
Material motorshaft 1.4104
Protection class IP55
Motor protection (thermal) 130
weight 10,4 kg

COMBISTAR/V 2000-B/PT, 2800 min-1, 400 V

Impellerpump with motor, cabel and plug
Impellerpump with motor, cabel and plug

Art. Nr. 12238137431A

Impellerpump
flow rate max. litres 60 l/min
flow rate max. m³ 3,6 m³/h
max. pressure 3 bar
Inlet/outlet
Impeller Viton® (FKM) , Bush material stainless steel (1.4404)
Shaft sealing ring Viton® (FKM)
Material pump housing stainless steel 1.4404, aluminium AlMgSi1
With pump carrier

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 0,55 kW, Rated current (AC) 1,4 A
rotation max. 2800 min-1
Material motorshaft 1.4104
Protection class IP55
weight 10 kg

COMBISTAR/V 2000-B/PT, 3000 min-1, 24 V

Impellerpump with DC motor CEM
Impellerpump with DC motor CEM

Art. Nr. 12238132421A

Impellerpump
flow rate max. m³ 3,6 m³/h
flow rate max. litres 60 l/min
max. pressure 3 bar
Inlet/outlet 1" mt
Impeller Viton® (FKM) , Bush material stainless steel (1.4404)
Shaft sealing ring Viton® (FKM)
Material pump housing stainless steel 1.4404 / aluminium AIMgSi1
With pump carrier

Electric motor CEM
Voltage (DC) 24 V
Nominal power 0,37 kW, Rated current (DC) 17 A
rotation max. 3000 min-1
Motorshaft N-WE 14x30mm
Protection class IP55 , Operating mode S1
Electrical connection Control board
Colour RAL 9005 black
weight 10,5 kg

NIROSTAR/V 2000-A/PF,1400 min-1,230 V

Impellerpump with electric motor , cable and plug
Impellerpump with electric motor , cable and plug

Art. Nr. 13138136322

Impellerpump
flow rate max. litres 15 l/min
flow rate max. m³ 0,9 m³/h
max. pressure 3 bar
Inlet/outlet 3/4" mt
Impeller Viton® (FKM) ,
Bush material stainless steel (1.4404)
Material pump housing stainless steel 1.4404

Electric motor
Voltage (AC) 230 V,Nominal frequency 50 Hz
Nominal power 0,37 kW,Rated current (AC) 3,2 A
Starting capacitor 40 µF
Operating capacitor 16 µF
rotation max. 1400 min-1
Material motorshaft 1.4104
Protection class IP55
Motor protection (thermal) 130
