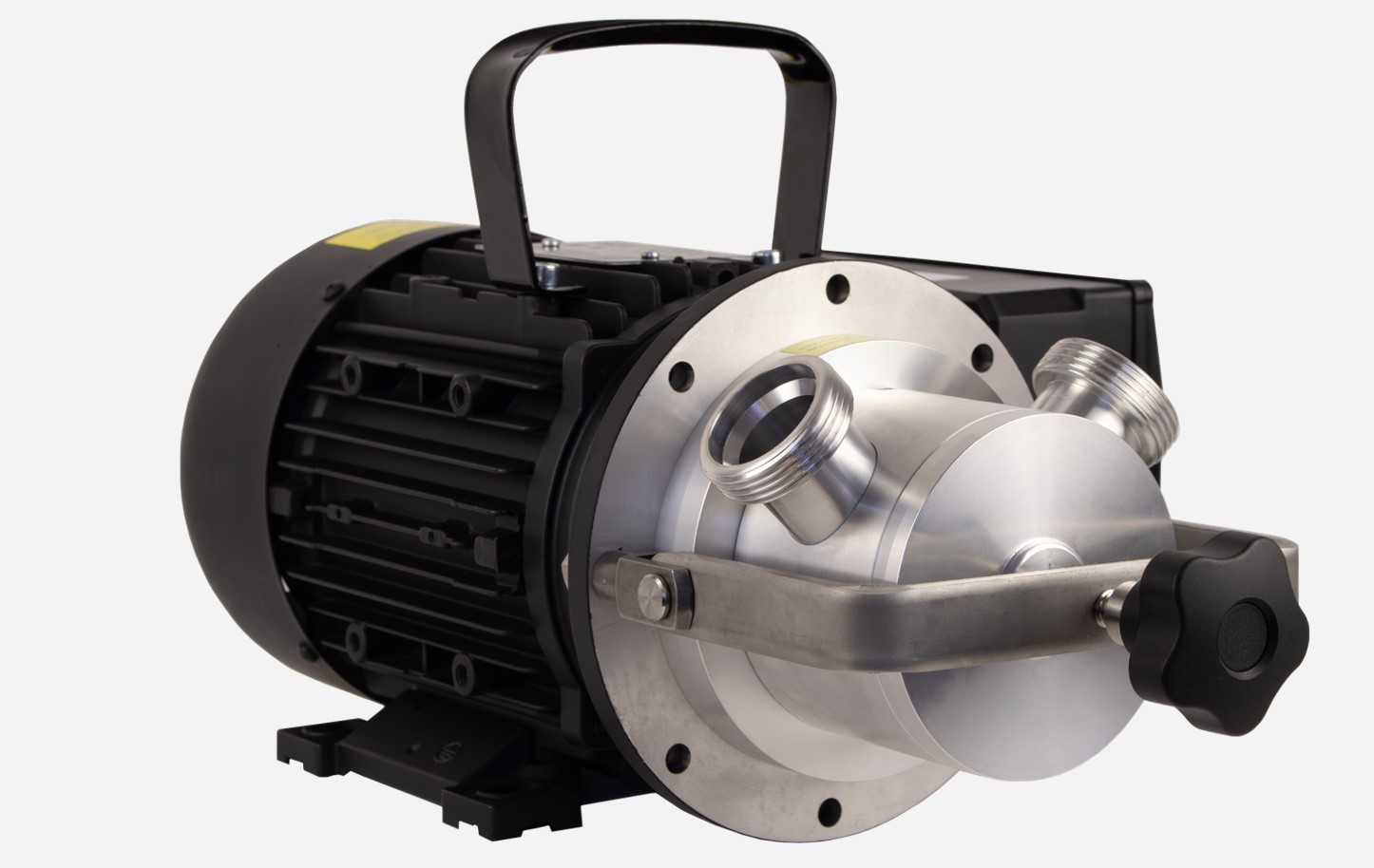

UNISTAR impeller pumpUnistar 2000-A | 2000-B | 2000-C | 2000-C PLUS

Dry self-priming universal pumps made of aluminum for a wide variety of liquids.

The UNISTAR pump series is made of aluminum and is suitable for all non-abrasive and non-corrosive media. This includes liquids such as:

  • Water
  • Wastewater
  • Diesel and biodiesel
  • Vegetable oil
  • Heating and motor oil
  • Cleaning agents
  • Antifreeze
  • Cooling lubricants

Depending on the model, the maximum flow rate is between 15 and 120 l/min.

Areas of application

Variants / Versions

Pump carrier (PT)

The adapter for pump types A and B is designed for mounting the pump on standard motors of size M71 B3/B14.

The pump carrier coupling from ZUWA serves as a quick-change system for the pump head, ensuring minimal downtime.
The pump head can be changed very quickly and easily with just 4 screws.

In addition, the coupling protects the motor from contact with aggressive liquids.

DC motors 12 V / 24 V

The ZUWA impeller pumps in the UNISTAR series can also be operated with DC motors.
Our quick-change pump carrier system is used for this purpose.

As a customer, you can choose from a wide range of DC motors depending on your application. Whether it's voltages (12 V, 24 V, 12/24 V), operating modes (S2, S1) or IP protection classes.

AC motors 230 V / 400 V and special voltages

Our pumps are available with various AC motors. We supply motors for 230 V and 400 V as standard.

These are also available with left/right rotation on request. In addition, we offer customer-specific special voltages, for example 110 V or 460 V, as well as versions for 60Hz.

Drill pump

The drill pump as a universal tool for craftsmen.
Quick and easy to assemble and ready for use in no time.

UNISTAR Drill pump

Consulting and service

Our team will be happy to assist you in selecting the right ZUWA pump for your application.

Please contact us at the following telephone number: +49 (0)8682 8934-0 or info@zuwa.de – we provide you with expert and personalized advice.

flow rate max. litres
15
90
15 90
max. pressure
1
5
1 5
Voltage (AC)
Voltage (DC)
Impeller material

UNISTAR 2000-A, 1400 min-1, 230 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 11111116322

Impellerpump
flow rate max. litres 15 l/min
flow rate max. m³ 0,9 m³/h
max. pressure 4 bar
Inlet/outlet ¾" mt
Impeller Perbunan® (NBR) , Bush material Polyamid
Shaft sealing ring Perbunan® (NBR)
Material pump housing aluminum EN AW-6060/AC-43400

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,37 kW, Rated current (AC) 3,2 A
Starting capacitor 40 µF
Operating capacitor 16 µF
rotation max. 1400 min-1
Material motorshaft 1.4104
Protection class IP55
weight 9,4 kg

UNISTAR 2000-A, 1400 min-1, 400 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 11111117322

Impellerpump
flow rate max. litres 15 l/min
flow rate max. m³ 0,9 m³/h
max. pressure 4 bar
Inlet/outlet ¾" aG
Impeller Perbunan® (NBR) , Bush material Polyamid
Shaft sealing ring Perbunan® (NBR)
Material pump housing aluminum EN AW-6060/AC-43400

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 0,37 kW, Rated current (AC) 1,15 A
rotation max. 1400 min-1
Material motorshaft 1.4404
Protection class IP55
weight 9,4 kg

UNISTAR 2000-A, 2800 min-1, 230 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 11111116321

Impellerpump
flow rate max. litres 30 l/min
flow rate max. m³ 1,8 m³/h
max. pressure 5 bar
Inlet/outlet ¾" mt
Impeller Perbunan® (NBR) , Buchse Polyamid
Shaft sealing ring Perbunan® (NBR)
Material pump housing aluminum EN AW-6060/AC-44300

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,37 kW, Rated current (AC) 3,2 A
Starting capacitor 40 µF
Operating capacitor 20 µF
rotation max. 2800 min-1
Protection class IP55
Material motorshaft 1.4104
weight 9,4 kg

UNISTAR 2000-A, 2800 min-1, 400 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 11111117321

Impellerpump
flow rate max. litres 30 l/min
flow rate max. m³ 1,8 m³/h
max. pressure 5 bar
Inlet/outlet ¾" mt
Impeller Perbunan® (NBR) , Bush material
Shaft sealing ring Perbunan® (NBR)
Material pump housing aluminum EN AW-6060/AC-43400

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 0,37 kW, Rated current (AC) 1,1 A
rotation max. 2800 min-1
Material motorshaft 1.4104
Protection class IP55
weight 9,4 kg

UNISTAR 2000-A/PT, 1400 min-1, 230 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 11111116422A

Impellerpump
flow rate max. litres 15 l/min
flow rate max. m³ 0,9 m³/h
max. pressure 4 bar
Inlet/outlet ¾" mt
Impeller Perbunan® (NBR) , Bush material Polyamid
Shaft sealing ring Perbunan® (NBR)
Material pump housing aluminum EN AW-6060/AC-43400
With pump carrier

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,37 kW, Rated current (AC) 3,2 A
Starting capacitor 40 µF, Operating capacitor 16 µF
rotation max. 1400 min-1
Material motorshaft 1.4104
Protection class IP55
weight 9 kg

UNISTAR 2000-A/PT, 1400 min-1, 400 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 11111117422A

Impellerpump
flow rate max. litres 15 l/min
flow rate max. m³ 0,9 m³/h
max. pressure 4 bar
Inlet/outlet ¾" mt
Impeller Perbunan® (NBR) , Bush material Polyamid
Shaft sealing ring Perbunan® (NBR)
Material pump housing aluminum EN AW-6060/AC-43400
With pump carrier

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 0,37 kW, Rated current (AC) 1,15 A
rotation max. 1400 min-1
Material motorshaft 1.4104
Protection class IP55
weight 9 kg

UNISTAR 2000-A/PT, 1500 min-1, 12 V

Impellerpump with DC motor type CEM
Impellerpump with DC motor type CEM

Art. Nr. 11111111412A

Impellerpump
flow rate max. litres 15 l/min
flow rate max. m³ 0,9 m³/h
max. pressure 4 bar
Inlet/outlet ¾" mt
Impeller Perbunan® (NBR) , Bush material Polyamid
Shaft sealing ring Perbunan® (NBR)
Material pump housing aluminum EN AW-6060/AC-43400
With pump carrier

Electric motor CEM
Voltage (DC) 12 V
Nominal power 0,25 kW
rotation max. 1500 min-1
Motorshaft N-WE 14x30mm
Protection class IP55 , Operating mode S1
Electrical connection Control board
Without cable and plug
Colour RAL 9005 black

UNISTAR 2000-A/PT, 1500 min-1, 24 V

Impellerpump with DC motor CEM
Impellerpump with DC motor CEM

Art. Nr. 11111112412A

Impellerpump
flow rate max. litres 15 l/min
flow rate max. m³ 0,9 m³/h
max. pressure 4 bar
Inlet/outlet ¾" mt
Impeller Perbunan® (NBR) , Bush material Polyamid
Shaft sealing ring Perbunan® (NBR)
Material pump housing aluminum EN AW-6060/AC-43400
With pump carrier

Electric motor CEM
Voltage (DC) 24 V
Nominal power 0,25 kW, Rated current (DC) 16 A
rotation max. 1500 min-1
Motorshaft N-WE 14x30mm
Protection class IP55 , Operating mode S1
Electrical connection Control board
Colour RAL 9005 black

UNISTAR 2000-A/PT, 2800 min-1, 230 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 11111116421A

Impellerpump
flow rate max. litres 30 l/min
flow rate max. m³ 1,8 m³/h
max. pressure 5 bar
Inlet/outlet ¾" mt
Impeller Perbunan® (NBR) , Bush material Polyamid
Shaft sealing ring Perbunan® (NBR)
Material pump housing aluminum EN AW-6060/AC-43400
With pump carrier

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,37 kW, Rated current (AC) 3,2 A
Starting capacitor 40 µF, Operating capacitor 12,5 µF
rotation max. 2800 min-1
Material motorshaft 1.4104
Protection class IP55
weight 9 kg

UNISTAR 2000-A/PT, 2800 min-1, 400 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 11111117421A

Impellerpump
flow rate max. litres 30 l/min
flow rate max. m³ 1,8 m³/h
Inlet/outlet ¾" mt
Impeller Perbunan® (NBR) , Bush material Polyamid
Shaft sealing ring Perbunan® (NBR)
Material pump housing aluminum EN AW-6060/AC-43400
With pump carrier

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 0,37 kW, Rated current (AC) 1,1 A
rotation max. 2800 min-1
Material motorshaft 1.4104
Protection class IP55
weight 9 kg

UNISTAR 2000-A/PT, 3000 min-1, 12 V

Impellerpump with DC motor type KEB
Impellerpump with DC motor type KEB

Art. Nr. 11111111521A

Impellerpump
flow rate max. litres 30 l/min
flow rate max. m³ 1,8 m³/h
max. pressure 5 bar
Inlet/outlet ¾" mt
Impeller Perbunan® (NBR) , Bush material Polyamid
Shaft sealing ring Perbunan® (NBR)
Material pump housing aluminum EN AW-6060/AC-43400
With pump carrier

Electric motor
Voltage (DC) 12 V
Nominal power 0,35/0,5 kW, Rated current (DC) 42/59 A
rotation max. 3000 min-1
Rotation direction left/right
Motorshaft N-WE 11x30
Protection class IP44 , Operating mode S2
Electrical connection Control board
weight 9,2 kg

UNISTAR 2000-A/PT, 3000 min-1, 24 V

Impellerpump with DC motor CEM
Impellerpump with DC motor CEM

Art. Nr. 11111112411A

Impellerpumpe
flow rate max. litres 30 l/min
flow rate max. m³ 1,8 m³/h
max. pressure 5 bar
Inlet/outlet ¾" mt
Impeller Perbunan® (NBR) , Bush material Polyamid
Shaft sealing ring Perbunan® (NBR)
Material pump housing aluminum EN AW-6060/AC-43400
With pump carrier

Electric motor CEM
Voltage (DC) 24 V
Nominal power 0,25 kW, Rated current (DC) 12 A
rotation max. 3000 min-1
Motorshaft N-WE 14x30mm
Protection class IP55 , Operating mode S1
Electrical connection Control board
Without cable and plug
Colour RAL 9005 black

UNISTAR 2000-B, 1400 min-1, 230 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 11211116332

Impellerpump Unistar 2000-B
flow rate max. litres 30 l/min
flow rate max. m³ 1,6 m³/h
max. pressure 4 bar
Inlet/outlet 1" mt
Impeller Perbunan® (NBR) , Bush material Polyamid
Shaft sealing ring Perbunan® (NBR)
Material pump housing aluminum EN AW-6082/AC-43400

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,55 kW, Rated current (AC) 3,8 A
Starting capacitor 40 µF
Operating capacitor 16 µF
rotation max. 1400 min-1
Material motorshaft 1.4404
Protection class IP55
Motor protection (thermal) 130
weight 10 kg

UNISTAR 2000-B, 1400 min-1, 400 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 11211117332

Impellerpump Unistar 2000-B
flow rate max. litres 30 l/min
flow rate max. m³ 1,6 m³/h
max. pressure 4 bar
Inlet/outlet 1" mt
Impeller Perbunan® (NBR) , Bush material Polyamid
Shaft sealing ring Perbunan® (NBR)
Material pump housing aluminum EN AW-6082/AC-43400

Electric motor
Voltage (AC) 400 Nominal frequency 50 Hz
Nominal power 0,55 kW, Rated current (AC) 1,6 A
rotation max. 1400 min-1
Material motorshaft 1.4104
Protection class IP55 , Operating mode S1
weight 10 kg

UNISTAR 2000-B, 2800 min-1, 230 V

Solar filling pump with motor, on supporting plate
Solar filling pump with motor, on supporting plate

Art. Nr. 110130M-SOL

Impellerpump Unistar 2000-B
flow rate max. litres 60 l/min
flow rate max. m³ 3,6 m³/h
max. pressure 5 bar
Inlet/outlet 1" mt
Impeller Perbunan® (NBR) , Bush material Polyamid
Shaft sealing ring Perbunan® (NBR)
Material pump housing aluminum EN AW-6060/AC-43400

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,55 kW, Rated current (AC) 4,3 A
rotation max. 2800 min-1
Material motorshaft 1.4404
Protection class IP55

Equipment/Accessories :
- Large inlet filter with inspection window
- Bleeding at the pump outlet
- Mounted on supporting frame with rubber buffer

weight 12,5 kg

UNISTAR 2000-B, 2800 min-1, 230 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 11218116331

Impellerpump
flow rate max. litres 60 l/min
flow rate max. m³ 3,6 m³/h
max. pressure 5 bar
Inlet/outlet 1" mt
Impeller Perbunan® (NBR) , Bush material stainless steel (1.4404)
Shaft sealing ring Perbunan® (NBR)
Material pump housing aluminum EN AW-6060/AC-43400

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,55 kW, Rated current (AC) 4,3 A
Starting capacitor 40 µF, Operating capacitor 20 µF
rotation max. 2800 min-1
Material motorshaft 1.4404
Protection class IP55
Motor protection (thermal) 130
weight 9,6 kg

UNISTAR 2000-B, 2800 min-1, 230 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 11211116331

Impellerpump Unistar 2000-B
flow rate max. litres 60 l/min
flow rate max. m³ 3,6 m³/h
max. pressure 5 bar
Inlet/outlet 1" mt
Impeller Perbunan® (NBR) , Bush material Polyamid
Shaft sealing ring Perbunan® (NBR)
Material pump housing aluminum EN AW-6082/AC-43400

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,55 kW, Rated current (AC) 4,3 A
Starting capacitor 40 µF, Operating capacitor 20 µF
rotation max. 2800 min-1
Protection class IP55
Material motorshaft 1.4404
weight 10 kg

UNISTAR 2000-B, 2800 min-1, 400 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 11211117331

Impellerpump Unistar 2000-B
flow rate max. m³ 3,6 m³/h
flow rate max. litres 60 l/min
max. pressure 5 bar
Inlet/outlet 1" mt
Impeller Perbunan® (NBR) , Bush material Polyamid
Shaft sealing ring Perbunan® (NBR)
Material pump housing aluminum EN AW-6060/AC-43400

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 0,55 kW, Rated current (AC) 1,4 A
rotation max. 2800 min-1
Material motorshaft 1.4104
Protection class IP55
weight 9,6 kg

UNISTAR 2000-B, 2800 min-1, 400 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 11218117331

Impellerpump
flow rate max. litres 60 l/min
flow rate max. m³ 3,6 m³/h
max. pressure 5 bar
Inlet/outlet 1" mt
Impeller Perbunan® (NBR) , Bush material stainless steel (1.4404)
Shaft sealing ring Perbunan® (NBR)
Material pump housing aluminum EN AW-6060/AC-43400

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 0,55 kW, Rated current (AC) 1,4 A
rotation max. 2800 min-1
Material motorshaft 1.4104
Protection class IP55
weight 9,6 kg

UNISTAR 2000-B, 2800, 230 Volt

Impeller pump with cable and plug
Impeller pump with cable and plug

Art. Nr. 11211116531

Motor: 230 V, 50 Hz, 4,3 A
0,55 kW, 2730 r/min., IP: 55
Pump: max. 60 l/min., max. 4 bar
Connections 1" m.t.
Impeller and Shaft sealing ring
Perbunan
Pump housing Aluminium
Pump is directly flanged on the
motor shaft
Extras: motor with left/right switch

UNISTAR 2000-B, 2800, 400

Impellerpump with cable and plug
Impellerpump with cable and plug

Art. Nr. 11211117531

Motor: 230/400 V, 50 Hz, 2,4/1,4 A
0,55 Kw, 2800 U/Min, IP: 55; 9,2 kg;
Rechts-/Linkslauf
Pumpe: max. 60 Liter/Min., max. 5 bar
Anschlüsse 1" aG
Impeller und Wellendichtring Perbunan
Pumpenkörper Aluminium
Pumpe direkt auf Motorwelle angeflanscht

UNISTAR 2000-B, 980/1700 min-1, 12/24 V

Impellerpump with DC motor type Power Tronic
Impellerpump with DC motor type Power Tronic

Art. Nr. 11211111312

Impellerpump
flow rate max. litres 16/32 l/min
flow rate max. m³ 0,96/1,92 m³/h
max. pressure 1,5/2,5 Bar
Inlet/outlet 1" mt
Impeller Perbunan® (NBR) , Bush material Polyamid
Material Perbunan® (NBR)
Material pump housing aluminum EN AW-6060/AC-43400

Electric motor Power Tronic
Voltage (DC) 12/24 V
Nominal power 0,35/0,45 kW
Rated current (DC) starting current 17/20, operating current 12/15 A
rotation max. 980/1700 min-1
Motorshaft S-WE 14x58,5
Protection class IP44 , Operating mode S2
5 m cable and on/off switch
weight 3,1 kg

UNISTAR 2000-B, GLRD, 1400, 230 Volt

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 11211256332

Motor: 230 V, 50 Hz, 4,35 A
0,55Kw, 1350 U/Min, IP: 55; 9,5 kg;
Pumpe: BAR: max. 4 Liter/min.: max. 30
Impeller Perbunan
Gleitringdichtung Carbon/Ceramik/FKM
Pumpe direkt auf Motorwelle angeflanscht

UNISTAR 2000-B, GLRD, 2800, 230 Volt

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 11211256531

Motor: 230 V, 50 Hz, 4 A
0,55Kw, 2800 U/Min, IP: 55; 9,5 kg;
Pumpe: BAR: max. 5 Liter/min.: max. 60
Impeller Perbunan
Gleitringdichtung Carbon/Ceramik/FKM
Pumpe direkt auf Motorwelle angeflanscht

UNISTAR 2000-B/PT, 1400 min-1, 230 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 11211116432A

Impellerpump Unistar 2000-B
flow rate max. litres 30 l/min
flow rate max. m³ 1,8 m³/h
max. pressure 4 bar
Impeller Perbunan® (NBR) , Bush material Polyamid
Shaft sealing ring Perbunan® (NBR)
Material pump housing aluminum EN AW-6060/AC-43400
With pump carrier

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,55 kW, Rated current (AC) 3,8 A
Starting capacitor 40 µF, Operating capacitor 16 µF
rotation max. 1400 min-1
Material motorshaft 1.4104
Protection class IP55
weight 9,2 kg

UNISTAR 2000-B/PT, 1500 min-1, 24 V

Impeller pump with DC motor CEM
Impeller pump with DC motor CEM

Art. Nr. 11211112422A

Impellerpump Unistar 2000-B
flow rate max. litres 30 l/min
flow rate max. m³ 1,8 m³/h
max. pressure 4 bar
Inlet/outlet 1" mt
Impeller Perbunan® (NBR) , Bush material Polyamid
Shaft sealing ring Perbunan® (NBR)
Material pump housing aluminum EN AW-6060/AC-43400
With pump carrier

Electric motor CEM
Voltage (DC) 24 V
Nominal power 0,37 kW, Rated current (DC) 17 A
rotation max. 1500 min-1
Material motorshaft carbon steel C45E
Protection class IP55 , Operating mode S1
weight 10 kg

UNISTAR 2000-B/PT, 2800 min-1, 400 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 11211117431A

Impellerpump Unistar 2000-B
flow rate max. litres 60 l/min
flow rate max. m³ 3,6 m³/h
max. pressure 5 bar
Inlet/outlet 1" mt
Impeller Perbunan® (NBR) , Bush material Polyamid
Shaft sealing ring Perbunan® (NBR)
Material pump housing aluminum EN AW-6060/AC-43400
With pump carrier

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 0,55 kW, Rated current (AC) 1,4 A
rotation max. 2800 min-1
Material motorshaft 1.4104
Protection class IP55
weight 9,2 kg

UNISTAR 2000-B/PT, 3000 min-1, 12 V

Impellerpump with DC motor type KEB
Impellerpump with DC motor type KEB

Art. Nr. 11211111531A

Impellerpump
flow rate max. litres 60 l/min
flow rate max. m³ 3,6 m³/h
max. pressure 5 bar
Inlet/outlet 1" mt
Impeller Perbunan® (NBR) , Bush material Polyamid
Shaft sealing ring Perbunan® (NBR)
Material pump housing aluminum EN AW-6060/AC-43400
With pump carrier

Electric motor
Voltage (DC) 12 V
Nominal power 0,6/0,8 kW, Rated current (DC) 71/94 A
rotation max. 3000 min-1
Rotation direction left/right
Motorshaft N-WE 14x30
Protection class IP44 , Operating mode S2
Electrical connection Control board
weight 10,6 kg

UNISTAR 2000-B/PT, 3000 min-1, 12 V

Impellerpump with DC motor type CEM
Impellerpump with DC motor type CEM

Art. Nr. 11211111421A

Impellerpump
flow rate max. litres 60 l/min
flow rate max. m³ 3,6 m³/h
max. pressure 5 bar
Inlet/outlet 1" mt
Impeller Perbunan® (NBR) , Bush material Polyamid
Shaft sealing ring Perbunan® (NBR)
Material pump housing aluminum EN AW-6060/AC-43400
With pump carrier

Electric motor CEM
Voltage (DC) 12 V
Nominal power 0,37 kW, Rated current (DC) 30 A
rotation max. 3000 min-1
Material motorshaft carbon steel C45E
Protection class IP55 , Operating mode S1
Electrical connection Control board
weight 9,5 kg

UNISTAR 2000-B/PT, 3000 min-1, 24 V

Impellerpump with DC motor brand CEM
Impellerpump with DC motor brand CEM

Art. Nr. 11211112421A

Impellerpump
flow rate max. litres 60 l/min
flow rate max. m³ 3,6 m³/h
max. pressure 5 bar
Inlet/outlet 1" mt
Impeller Perbunan® (NBR) , Bush material Polyamid
Shaft sealing ring Perbunan® (NBR)
Material pump housing aluminum EN AW-6060/AC-43400
With pump carrier

Electric motor
Voltage (DC) 24 V
Nominal power 0,37 kW, Rated current (DC) 17 A
rotation max. 3000 min-1
Motorshaft N-WE 14x30
Protection class IP55 , Operating mode S1
weight 9,5 kg

UNISTAR 2000-C, 2800 min-1, 230 V

Impellerpump with motor, cable and plug, L/R runni
Impellerpump with motor, cable and plug, L/R runni

Art. Nr. 11311116351

Impellerpump Unistar 2000-C
flow rate max. litres 90 l/min
flow rate max. m³ 5,4 m³/h
max. pressure 5 bar
Inlet/outlet 1¼ mt
Impeller Perbunan® (NBR) , Bush material Polyamid
Shaft sealing ring Perbunan® (NBR)
Material pump housing aluminum EN AW-6060/AC-43400

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 1,1 kW, Rated current (AC) 7,1 A
Starting capacitor 100 µF
Operating capacitor 25 µF
rotation max. 2800 min-1
Material motorshaft 1.4104
Protection class IP55
Motor protection (thermal) 150
Rotation direction left/right
weight 13 kg

UNISTAR 2000-C, 2800 min-1, 400 V

Impellerpump with motor, cable and plug, L/R runni
Impellerpump with motor, cable and plug, L/R runni

Art. Nr. 11311117351

Impellerpump Unistar 2000-C
flow rate max. litres 90 l/min
flow rate max. m³ 5,4 m³/h
max. pressure 5 bar
Inlet/outlet 1¼ mt
Impeller Perbunan® (NBR) , Bush material
Shaft sealing ring Perbunan® (NBR)
Material pump housing aluminum EN AW-6060/AC-43400

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 1,1 kW, Rated current (AC) 2,7 A
rotation max. 2800 min-1
Motorshaft S-WE 14x89mm
Rotation direction left/right
Protection class IP55
weight 13 kg

UNISTAR/E 2000-A/PT, 1400 min-1, 400 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 11121127422A

Impellerpump
flow rate max. litres 15 l/min
flow rate max. m³ 0,9 m³/h
max. pressure 3 bar
Inlet/outlet ¾" mt
Impeller EPDM , Bush material Polyamid
Material pump housing aluminum EN AW-6060/AC-43400
With pump carrier

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 0,37 kW, Rated current (AC) 1,15 A
rotation max. 1400 min-1
Material motorshaft 1.4104
Protection class IP55
weight 9 kg

UNISTAR/E 2000-B, 2800 min-1, 400 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 11221127331

Impellerpump
flow rate max. litres 60 l/min
flow rate max. m³ 3,6 m³/h
max. pressure 3 bar
Inlet/outlet 1" aG
Impeller EPDM , Bush material Polyamid
Shaft sealing ring EPDM
Material pump housing aluminum EN AW-6060/AC-43400

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 0,55 kW, Rated current (AC) 1,4 A
rotation max. 2800 min-1
Material motorshaft 1.4104
Protection class IP55 , Operating mode S1
weight 9,6 kg

UNISTAR/E 2000-B, 2800 min-1, 400 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 11228127331

Impellerpumpe
flow rate max. litres 60 l/min
flow rate max. m³ 3,6 m³/h
max. pressure 3 bar
Inlet/outlet 1" aG
Impeller EPDM , Bush material stainless steel (1.4404)
Shaft sealing ring EPDM
Material pump housing aluminum EN AW-6060/AC-43400

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 0,55 kW, Rated current (AC) 1,4 A
rotation max. 2800 min-1
Material motorshaft 1.4104
Protection class IP55
weight 9,6 kg

UNISTAR/E 2000-B/PT, 1400 min-1, 230 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 11221126432A

Impellerpump
flow rate max. litres 30 l/min
flow rate max. m³ 1,8 m³/h
max. pressure 3 bar
Inlet/outlet 1" mt
Impeller EPDM , Bush material Polyamid
Shaft sealing ring EPDM
Material pump housing aluminum EN AW-6060/AC-43400
With pump carrier

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,55 kW, Rated current (AC) 3,8 A
Starting capacitor 40 µF, Operating capacitor 16 µF
rotation max. 1400 min-1
Material motorshaft 1.4104
Protection class IP55
weight 9,2 kg

UNISTAR/E 2000-B/PT, 3000 min-1, 24 V

Impellerpump with DC motor CEM
Impellerpump with DC motor CEM

Art. Nr. 11221122421A

Impellerpumpe
flow rate max. litres 60 l/min
flow rate max. m³ 3,6 m³/h
max. pressure 3 bar
Inlet/outlet 1" aG
Impeller EPDM , Bush material Polyamid
Shaft sealing ring EPDM
Material pump housing aluminum EN AW-6060/AC-43400
With pump carrier

Electric motor CEM
Voltage (DC) 24 V
Nominal power 0,37 kW, Rated current (DC) 17 A
rotation max. 3000 min-1
Motorshaft N-WE 14x30mm
Protection class IP55 , Operating mode S1
Electrical connection Control board

UNISTAR/E 2000-B/PT, GLRD, 2800 min-1, 400 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 11228227431A

Impellerpump
flow rate max. litres 60 l/min
flow rate max. m³ 3,6 m³/h
max. pressure 3 bar
Inlet/outlet 1" mt
Impeller EPDM , Bush material stainless steel (1.4404)
Mechanical seal Car/Cer/EPDM
Material pump housing aluminum EN AW-6060/AC-43400
With pump carrier

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 0,55 kW, Rated current (AC) 1,4 A
rotation max. 2800 min-1
Material motorshaft 1.4104
Protection class IP55
weight 9,4 kg

UNISTAR/E 2000-C, 2800 min-1, 230 V, L/R

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 11328126351

Impellerpump
flow rate max. litres 90 l/min
flow rate max. m³ 5,4 m³/h
max. pressure 3 bar
Inlet/outlet 1 ¼“ mt
Impeller EPDM , Bush material stainless steel (1.4404)
Shaft sealing ring EPDM
Material pump housing aluminum AlMgSi1

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 1,1 kW, Rated current (AC) 7,1 A
Starting capacitor 100 µF, Operating capacitor 25 µF
rotation max. 2800 min-1
Rotation direction left/right
Material motorshaft 1.4104
Protection class IP55
weight 13 kg

UNISTAR/K 2000-A, 1400 min-1, 230 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 11191116322

Impellerpump
flow rate max. litres 15 l/min
flow rate max. m³ 0,9 m³/h
max. pressure 4 bar
Inlet/outlet ¾" mt
Impeller TPU , Bush material polyamide bush
Shaft sealing ring Perbunan® (NBR)
Material pump housing aluminum EN AW-6060/AC-43400

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,37 kW, Rated current (AC) 3,2 A
Starting capacitor 40 µF
Operating capacitor 16 µF
rotation max. 1400 min-1
Material motorshaft 1.4104
Protection class IP55
weight 9,4 kg

UNISTAR/K 2000-A, 1400 min-1, 400 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 11191117322

Impellerpump
flow rate max. litres 15 l/min
flow rate max. m³ 0,9 m³/h
max. pressure 4 bar
Inlet/outlet ¾" mt
Impeller TPU , Bush material polyamide bush
Shaft sealing ring Perbunan® (NBR)
Max. fluid temperature 60 °C
Material pump housing aluminum EN AW-6060/AC-43400

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 0,37 kW, Rated current (AC) 1,15 A
rotation max. 1400 min-1
Material motorshaft 1.4404
Protection class IP55
weight 9,4 kg

UNISTAR/K 2000-A, 2800 min-1, 230 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 11191116321

Impellerpump
flow rate max. m³ 1,8 m³/h
flow rate max. litres 30 l/min
max. pressure 4 bar
Inlet/outlet ¾" mt
Impeller thermoplastic (no bi-directional use) , Bush material polyamide bush
Temperature max. 60 °C
Shaft sealing ring Perbunan® (NBR)
Material pump housing aluminum EN AW-6060/AC-43400

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,37 kW, Rated current (AC) 3,2 A
Starting capacitor 40 µF
Operating capacitor 20 µF
rotation max. 2800 min-1
Material motorshaft 1.4104
Protection class IP55
Motor protection (thermal) 130
weight 9,4 kg

UNISTAR/K 2000-A, 2800 min-1, 230 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 11191136321

Impellerpump
flow rate max. m³ 1,8 m³/h
flow rate max. litres 30 l/min
max. pressure 4 bar
Inlet/outlet ¾" mt
Impeller TPU , Bush material polyamide bush
Max. fluid temperature 60 °C
Shaft sealing ring Viton® (FKM)
Material pump housing aluminum EN AW-6060/AC-43400

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,37 kW, Rated current (AC) 3,2 A
Starting capacitor 40 µF
Operating capacitor 20 µF
rotation max. 2800 min-1
Material motorshaft 1.4104
Protection class IP55
Motor protection (thermal) 130
weight 9,4 kg

UNISTAR/K 2000-A, 2800 min-1, 400 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 11191137321

Impellerpump
flow rate max. litres 30 l/min
flow rate max. m³ 1,8 m³/h
max. pressure 5 bar
Inlet/outlet ¾" mt
Impeller TPU , Bush material polyamide bush
Shaft sealing ring Viton® (FKM)
Max. fluid temperature 60 °C
Material pump housing aluminum EN AW-6060/AC-43400

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 0,37 kW, Rated current (AC) 1,1 A
rotation max. 2800 min-1
Material motorshaft 1.4104
Protection class IP55
weight 9,4 kg

UNISTAR/K 2000-A, 2800 min-1, 400 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 11191117321

Impellerpump
flow rate max. litres 30 l/min
flow rate max. m³ 1,8 m³/h
max. pressure 5 bar
Inlet/outlet ¾" mt
Impeller TPU , Bush material polyamide bush
Shaft sealing ring Perbunan® (NBR)
Max. fluid temperature 60 °C
Material pump housing aluminum EN AW-6060/AC-43400

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 0,37 kW, Rated current (AC) 1,1 A
rotation max. 2800 min-1
Material motorshaft 1.4104
Protection class IP55
weight 9,4 kg

UNISTAR/K 2000-A/PT, 3000 min-1, 24 V

Impellerpump with DC motor CEM
Impellerpump with DC motor CEM

Art. Nr. 11191132411A

Impellerpump
flow rate max. litres 30 l/min
flow rate max. m³ 1,8 m³/h
max. pressure 5 bar
Inlet/outlet ¾" mt
Impeller TPU , Bush material polyamide bush
Shaft sealing ring Viton® (FKM)
Material pump housing aluminum EN AW-6060/AC-43400
With pump carrier

Electric motor CEM
Voltage (DC) 24 V
Nominal power 0,25 kW, Rated current (DC) 12 A
rotation max. 3000 min-1
Motorshaft N-WE 14x30mm
Protection class IP55 , Operating mode S1
Electrical connection Control board
Without cable and plug
Colour RAL 9005 black

UNISTAR/K 2000-A/PT, 3000 min-1, 24 V

Impellerpump with DC motor CEM
Impellerpump with DC motor CEM

Art. Nr. 11191112411A

Impellerpump
flow rate max. litres 30 l/min
flow rate max. m³ 1,8 m³/h
max. pressure 5 bar
Inlet/outlet ¾" mt
Impeller thermoplastic (no bi-directional use) , Bush material polyamide bush
Shaft sealing ring Perbunan® (NBR)
Material pump housing aluminum EN AW-6060/AC-43400
With pump carrier

Electric motor CEM
Voltage (DC) 24 V
Nominal power 0,25 kW, Rated current (DC) 12 A
rotation max. 3000 min-1
Motorshaft N-WE 14x30mm
Protection class IP55 , Operating mode S1
Electrical connection Control board
Without cable and plug
Colour RAL 9005 black

UNISTAR/K 2000-B, 2800 min-1, 230 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 11291116331

Impellerpump
flow rate max. litres 60 l/min
flow rate max. m³ 3,6 m³/h
max. pressure 5 bar
Inlet/outlet 1" mt
Impeller TPU , Bush material polyamide bush
Max. fluid temperature 60 °C
Shaft sealing ring Perbunan® (NBR)
Material pump housing aluminum EN AW-6060/AC-43400

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,55 kW, Rated current (AC) 4,3 A
Starting capacitor 40 µF
Operating capacitor 20 µF
rotation max. 2800 min-1
Material motorshaft 1.4404
Protection class IP55
Motor protection (thermal) 130
weight 10 kg

UNISTAR/K 2000-B, 2800 min-1, 400 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 11291137331

Impellerpump
flow rate max. litres 60 l/min
flow rate max. m³ 3,6 m³/h
max. pressure 5 bar
Inlet/outlet 1" mt
Impeller TPU , Bush material polyamide bush
Shaft sealing ring Viton® (FKM)
Material pump housing aluminum EN AW-6060/AC-43400

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 0,55 kW, Rated current (AC) 1,4 A
rotation max. 2800 min-1
Material motorshaft 1.4104
Protection class IP55

UNISTAR/K 2000-B, 2800 min-1, 400 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 11291117331

Impellerpump
flow rate max. litres 60 l/min
flow rate max. m³ 3,6 m³/h
max. pressure 5 bar
Inlet/outlet 1" mt
Impeller TPU , Bush material polyamide bush
Shaft sealing ring Perbunan® (NBR)
Material pump housing aluminum EN AW-6060/AC-43400

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 0,55 kW, Rated current (AC) 1,4 A
rotation max. 2800 min-1
Material motorshaft 1.4104
Protection class IP55

UNISTAR/K 2000-B/PT, 2800 min-1, 230 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 11291136431A

Impellerpump
flow rate max. litres 60 l/min
flow rate max. m³ 3,6 m³/h
max. pressure 5 bar
Inlet/outlet 1" mt
Impeller TPU , Bush material polyamide bush
(not suitable for bi-directional use)
Shaft sealing ring Viton® (FKM)
Material pump housing aluminum EN AW-6060/AC-43400
With pump carrier

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,55 kW, Rated current (AC) 4 A
Starting capacitor 40 µF, Operating capacitor 20 µF
rotation max. 2800 min-1
Material motorshaft 1.4104
Protection class IP55 , Operating capacitor 20 µF
weight 9,2 kg

UNISTAR/K 2000-B/PT, 2800 min-1, 230 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 11291116431A

Impellerpump
flow rate max. litres 60 l/min
flow rate max. m³ 3,6 m³/h
max. pressure 5 bar
Inlet/outlet 1" mt
Impeller thermoplastic (no bi-directional use) , Bush material polyamide bush
(not suitable for bi-directional use)
Shaft sealing ring Perbunan® (NBR)
Material pump housing aluminum EN AW-6060/AC-43400
With pump carrier

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,55 kW, Rated current (AC) 4 A
Starting capacitor 40 µF, Operating capacitor 20 µF
rotation max. 2800 min-1
Material motorshaft 1.4104
Protection class IP55 , Operating capacitor 20 µF
weight 9,2 kg

UNISTAR/K 2000-B/PT, 3000 min-1, 24 V

Impellerpump with DC motor type CEM
Impellerpump with DC motor type CEM

Art. Nr. 11291132421A

Impellerpumpe
flow rate max. litres 60 l/min
flow rate max. m³ 3,6 m³/h
max. pressure 5 bar
Inlet/outlet 1" mt
Impeller TPU , Bush material polyamide bush
Shaft sealing ring Viton® (FKM)
Material pump housing aluminum EN AW-6060/AC-43400
With pump carrier

Electric motor CEM
Voltage (DC) 24 V
Nominal power 0,37 kW, Rated current (DC) 17 A
rotation max. 3000 min-1
Motorshaft N-WE 14x30mm
Protection class IP55 , Operating mode S1
Electrical connection Control board
weight 9,5 kg

UNISTAR/K 2000-B/PT, 3000 min-1, 24 V

Impellerpump with DC motor type CEM
Impellerpump with DC motor type CEM

Art. Nr. 11291112421A

Impellerpumpe
flow rate max. litres 60 l/min
flow rate max. m³ 3,6 m³/h
max. pressure 5 bar
Inlet/outlet 1" mt
Impeller thermoplastic (no bi-directional use) , Bush material polyamide bush
Shaft sealing ring Perbunan® (NBR)
Material pump housing aluminum EN AW-6060/AC-43400
With pump carrier

Electric motor CEM
Voltage (DC) 24 V
Nominal power 0,37 kW, Rated current (DC) 17 A
rotation max. 3000 min-1
Motorshaft N-WE 14x30mm
Protection class IP55 , Operating mode S1
Electrical connection Control board
weight 9,5 kg

UNISTAR/K 2000-C, 2800 min-1, 230 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 11391136351

Impellerpump
flow rate max. litres 90 l/min
flow rate max. m³ 5,4 m³/h
max. pressure 5 bar
Inlet/outlet 1 1/4" mt
Impeller TPU , Bush material polyamide bush
(not suitable for bi-directional use)
Shaft sealing ring Viton® (FKM)
Material pump housing aluminum EN AW-6060/AC-43400

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 1,1 kW, Rated current (AC) 7,1 A
Starting capacitor 100 µF
Operating capacitor 25 µF
rotation max. 2800 min-1
Rotation direction left/right
Material motorshaft 1.4104
Protection class IP55
Motor protection (thermal) 150
weight 13 kg

UNISTAR/K 2000-C, 2800 min-1, 400 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 11391137351

Impellerpump
flow rate max. litres 90 l/min
flow rate max. m³ 5,4 m³/h
max. pressure 5 bar
Inlet/outlet 1 1/4" mt
Impeller TPU , Bush material polyamide bush
(not suitable for bi-directional use)
Shaft sealing ring Viton® (FKM)
Max. fluid temperature 60 °C
Material pump housing aluminum EN AW-6060/AC-43400

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 1,1 kW, Rated current (AC) 2,7 A
rotation max. 2800 min-1
Material motorshaft 1.4104
Rotation direction left/right
Protection class IP55
weight 13 kg

UNISTAR/V 2000-A, 1400 min-1, 230 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 11131136322

Impellerpump
flow rate max. litres 15 l/min
flow rate max. m³ 0,9 m³/h
max. pressure 3 bar
Inlet/outlet ¾" mt
Impeller Viton® (FKM) , Bush material Polyamid
Shaft sealing ring Viton® (FKM)
Material pump housing aluminum EN AW-6060/AC-43400

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,37 kW, Rated current (AC) 3,2 A
Starting capacitor 40 µF
Operating capacitor 16 µF
rotation max. 1400 min-1
Material motorshaft 1.4104
Protection class IP55
Motor protection (thermal) 130
weight 9,4 kg

UNISTAR/V 2000-A, 1400 min-1, 400 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 11131137322

Impellerpump
flow rate max. litres 15 l/min
flow rate max. m³ 0,9 m³/h
max. pressure 3 bar
Inlet/outlet ¾" mt
Impeller Viton® (FKM) , Bush material Polyamid
Shaft sealing ring Viton® (FKM)
Material pump housing aluminum EN AW-6060/AC-43400

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 0,37 kW, Rated current (AC) 1,15 A
rotation max. 1400 min-1
Motorshaft S-WE 14x37,5mm
Protection class IP55
weight 9,4 kg

UNISTAR/V 2000-A, 2800 min-1, 230 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 11131136321

Impellerpump
flow rate max. litres 30 l/min
flow rate max. m³ 1,8 m³/h
max. pressure 3 bar
Inlet/outlet ¾" mt
Impeller Viton® (FKM) , Bush material
Shaft sealing ring Viton® (FKM)
Material pump housing aluminum EN AW-6060/AC-43400

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,37 kW, Rated current (AC) 3,2 A
Starting capacitor 40 µF
Operating capacitor 20 µF
rotation max. 2800 min-1
Material motorshaft 1.4104
Protection class IP55
Motor protection (thermal) 130
weight 9,4 kg

UNISTAR/V 2000-A, 2800 min-1, 400 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 11131137321

Impellerpump
flow rate max. litres 30 l/min
flow rate max. m³ 1,8 m³/h
max. pressure 3 bar
Inlet/outlet ¾" mt
Impeller Viton® (FKM) , Bush material Polyamid
Shaft sealing ring Viton® (FKM)
Material pump housing aluminum EN AW-6060/AC-43400

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 0,37 kW, Rated current (AC) 1,1 A
rotation max. 2800 min-1
Material motorshaft 1.4104
Protection class IP55
weight 9,4 kg

UNISTAR/V 2000-A/PT, 1400 min-1, 230 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 11131136422A

Impellerpump
flow rate max. litres 15 l/min
flow rate max. m³ 0,9 m³/h
max. pressure 3 bar
Inlet/outlet ¾" mt
Impeller Viton® (FKM) , Bush material Polyamid
Shaft sealing ring Viton® (FKM)
Material pump housing aluminum EN AW-6060/AC-43400
With pump carrier

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,37 kW, Rated current (AC) 3,2 A
Starting capacitor 40 µF, Operating capacitor 16 µF
rotation max. 1400 min-1
Material motorshaft 1.4104
Protection class IP55
weight 9 kg

UNISTAR/V 2000-A/PT, 1400 min-1, 400 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 11131137422A

Impellerpump
flow rate max. litres 15 l/min
flow rate max. m³ 0,9 m³/h
max. pressure 3 bar
Inlet/outlet ¾" mt
Impeller Viton® (FKM) , Bush material Polyamid
Shaft sealing ring Viton® (FKM)
Material pump housing aluminum EN AW-6060/AC-43400
With pump carrier

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 0,37 kW, Rated current (AC) 1,15 A
rotation max. 1400 min-1
Material motorshaft 1.4104
Protection class IP55
weight 9 kg

UNISTAR/V 2000-A/PT, 1500 min-1, 24 V

Impellerpump with DC motor CEM
Impellerpump with DC motor CEM

Art. Nr. 11131132412A

Impellerpump
flow rate max. litres 15 l/min
flow rate max. m³ 0,9 m³/h
max. pressure 3 bar
Inlet/outlet ¾" mt
Impeller Viton® (FKM) , Bush material Polyamid
Shaft sealing ring Viton® (FKM)
Material pump housing aluminum EN AW-6060/AC-43400
With pump carrier

Electric motor CEM
Voltage (DC) 24 V
Nominal power 0,25 kW, Rated current (DC) 16 A
rotation max. 1500 min-1
Motorshaft N-WE 14x30mm
Protection class IP55 , Operating mode S1
Electrical connection Control board
Colour RAL 9005 black
weight 9,2 kg

UNISTAR/V 2000-A/PT, 2800 min-1, 230 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 11138136421A

Impellerpump
flow rate max. litres 30 l/min
flow rate max. m³ 1,8 m³/h
max. pressure 3 bar
Inlet/outlet ¾" mt
Impeller Viton® (FKM) , Bush material stainless steel (1.4404)
Shaft sealing ring Viton® (FKM)
Material pump housing aluminum EN AW-6060/AC-43400
With pump carrier

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,37 kW, Rated current (AC) 3,2 A
Starting capacitor 40 µF, Operating capacitor 12,5 µF
rotation max. 2800 min-1
Material motorshaft 1.4104
weight 9 kg

UNISTAR/V 2000-A/PT, 2800 min-1, 230 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 11131136421A

Impellerpump
flow rate max. litres 30 l/min
flow rate max. m³ 1,8 m³/h
max. pressure 3 bar
Inlet/outlet ¾" mt
Impeller Viton® (FKM) , Bush material Polyamid
Shaft sealing ring Viton® (FKM)
Material pump housing aluminum EN AW-6060/AC-43400
With pump carrier

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,37 kW, Rated current (AC) 3,2 A
Starting capacitor 40 µF, Operating capacitor 12,5 µF
rotation max. 2800 min-1
Material motorshaft 1.4104
Protection class IP55
weight 9 kg

UNISTAR/V 2000-A/PT, 3000 min-1, 24 V

Impellerpump with DC motor type CEM
Impellerpump with DC motor type CEM

Art. Nr. 11131132411A

Impellerpump
flow rate max. litres 30 l/min
flow rate max. m³ 1,8 m³/h
max. pressure 3 bar
Inlet/outlet ¾" mt
Impeller Viton® (FKM) , Bush material Polyamid
Shaft sealing ring Viton® (FKM)
Material pump housing aluminum EN AW-6060/AC-43400
With pump carrier

Electric motor CEM
Voltage (DC) 24 V
Nominal power 0,25 kW, Rated current (DC) 12 A
rotation max. 3000 min-1
Motorshaft N-WE 14x30mm
Protection class IP55 , Operating mode S1
Electrical connection Control board
weight 9,2 kg

UNISTAR/V 2000-B, 1400 min-1, 230 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 11231136332

Impellerpump
flow rate max. litres 30 l/min
flow rate max. m³ 1,8 m³/h
max. pressure 3 bar
Inlet/outlet 1" mt
Impeller Viton® (FKM) , Bush material Polyamid
Shaft sealing ring Viton® (FKM)
Material pump housing aluminum EN AW-6060/AC-43400

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,55 kW, Rated current (AC) 3,8 A
Starting capacitor 40 µF
Operating capacitor 16 µF
rotation max. 1400 min-1
Material motorshaft 1.4404
Protection class IP55 , Operating mode S1
Motor protection (thermal) 130
weight 10,0 kg

UNISTAR/V 2000-B, 1400 min-1, 400 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 11238137332

Impellerpump
flow rate max. litres 30 l/min
flow rate max. m³ 1,8 m³/h
max. pressure 3 bar
Inlet/outlet 1" mt
Impeller Viton® (FKM) , Bush material stainless steel (1.4404)
Shaft sealing ring Viton® (FKM)
Material pump housing aluminum EN AW-6060/AC-43400

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 0,55 kW, Rated current (AC) 1,6 A
rotation max. 1400 min-1
Material motorshaft 1.4404
Protection class IP55
weight 10 kg

UNISTAR/V 2000-B, 1400 min-1, 400 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 11231137332

Impellerpump
flow rate max. litres 30 l/min
flow rate max. m³ 1,8 m³/h
max. pressure 3 bar
Inlet/outlet 1" mt
Impeller Viton® (FKM) , Bush material
Shaft sealing ring Viton® (FKM)
Material pump housing aluminum EN AW-6060/AC-43400

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 0,55 kW, Rated current (AC) 1,6 A
rotation max. 1400 min-1
Material motorshaft 1.4404
Protection class IP55
weight 9,6 kg

UNISTAR/V 2000-B, 2800 min-1, 230 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 11231136331

Impellerpump
flow rate max. litres 60 l/min
flow rate max. m³ 3,6 m³/h
max. pressure 3 bar
Inlet/outlet 1" mt
Impeller Viton® (FKM) , Bush material Polyamid
Shaft sealing ring Viton® (FKM)
Material pump housing aluminum EN AW-6060/AC-43400

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,55 kW, Rated current (AC) 4,3 A
Starting capacitor 40 µF
Operating capacitor 20 µF
rotation max. 2800 min-1
Material motorshaft 1.4404
Protection class IP55
Motor protection (thermal) 130
weight 10 kg

UNISTAR/V 2000-B, 2800 min-1, 400 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 11231137331

Impellerpump
flow rate max. litres 60 l/min
flow rate max. m³ 3,6 m³/h
max. pressure 3 bar
Inlet/outlet 1" mt
Impeller Viton® (FKM) , Bush material Polyamid
Shaft sealing ring Viton® (FKM)
Material pump housing aluminum EN AW-6060/AC-43400

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 0,55 kW, Rated current (AC) 1,4 A
rotation max. 2800 min-1
Material motorshaft 1.4104
Protection class IP55
weight 9,6 kg

UNISTAR/V 2000-B/PT, 1400 min-1, 230 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 11231136432

Impellerpump
flow rate max. litres 30 l/min
flow rate max. m³ 1,8 m³/h
max. pressure 3 bar
Inlet/outlet 1" mt
Impeller Viton® (FKM) ,Bush material Polyamid
Shaft sealing ring Viton® (FKM)
Material pump housing aluminum EN AW-6060/AC-43400
With pump carrier

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,55 kW, Rated current (AC) 3,8 A
Starting capacitor 40 µF, Operating capacitor 16 µF
rotation max. 1400 min-1
Material motorshaft 1.4104
Protection class IP55
weight 9,2 kg

UNISTAR/V 2000-B/PT, 2800 min-1, 400 V

Impellerpump with motor, cable and plug
Impellerpump with motor, cable and plug

Art. Nr. 11231137431A

Impellerpump
flow rate max. litres 60 l/min
flow rate max. m³ 3,6 m³/h
max. pressure 3 bar
Inlet/outlet 1" mt
Impeller Viton® (FKM) , Bush material Polyamid
Shaft sealing ring Viton® (FKM)
Material pump housing aluminum EN AW-6060/AC-43400
With pump carrier

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 0,55 kW, Rated current (AC) 1,4 A
rotation max. 2800 min-1
Material motorshaft 1.4104
Protection class IP55
weight 9,2 kg

UNISTAR/V 2000-B/PT, 3000 min-1, 24 V

Impellerpump with DC motor CEM
Impellerpump with DC motor CEM

Art. Nr. 11238132421A

Impellerpump
flow rate max. litres 60 l/min
flow rate max. m³ 3,6 m³/h
max. pressure 3 bar
Inlet/outlet 1" mt
Impeller Viton® (FKM) , Bush material stainless steel (1.4404)
Shaft sealing ring Viton® (FKM)
Material pump housing aluminum EN AW-6060/AC-43400
With pump carrier

Electric motor CEM
Voltage (DC) 24 V
Nominal power 0,37 kW, Rated current (DC) 17 A
rotation max. 3000 min-1
Motorshaft N-WE 14x30mm
Protection class IP55 , Operating mode S1
Electrical connection Control board
weight 9,4 kg

UNISTAR/V 2000-B/PT, 3000 min-1, 24 V

Impellerpump with DC motor KEB
Impellerpump with DC motor KEB

Art. Nr. 11231132531A

Impellerpumpe
flow rate max. litres 60 l/min
flow rate max. m³ 3,6 m³/h
max. pressure 3 bar
Inlet/outlet 1" aG
Impeller Viton® (FKM) , Bush material Polyamid
Shaft sealing ring Viton® (FKM)
Material pump housing aluminum EN AW-6060/AC-43400
With pump carrier

Electric motor
Voltage (DC) 24 V
Nominal power 0,6/0,8 kW, Rated current (DC) 36/47 A
rotation max. 3000 min-1
Motorshaft N-WE 14x30
Protection class IP44 , Operating mode S2

UNISTAR/V 2000-C, 2800 min-1, 230 V

Impellerpump with motor, cable and plug, bi-direct
Impellerpump with motor, cable and plug, bi-direct

Art. Nr. 11331136351

Impellerpump
flow rate max. litres 90 l/min
flow rate max. m³ 5,4 m³/h
max. pressure 3 bar
Inlet/outlet 1 ¼“ mt
Impeller Viton® (FKM) , Bush material
Shaft sealing ring Viton® (FKM)
Material pump housing aluminum EN AW-6060/AC-43400

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 1,1 kW, Rated current (AC) 7,1 A
Starting capacitor 100 µF
Operating capacitor 25 µF
rotation max. 2800 min-1
Material motorshaft 1.4104
Rotation direction left/right
Protection class IP55
Motor protection (thermal) 150
weight 13 kg

UNISTAR/V 2000-C, 2800 min-1, 400 V

Impellerpump with motor, cable and plug, bi-direct
Impellerpump with motor, cable and plug, bi-direct

Art. Nr. 11331137351

Impellerpump
flow rate max. litres 90 l/min
flow rate max. m³ 5,4 m³/h
max. pressure 3 bar
Inlet/outlet 1 ¼“ mt
Impeller Viton® (FKM) , Bush material Polyamid
Shaft sealing ring Viton® (FKM)
Material pump housing aluminum EN AW-6060/AC-43400

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 1,1 kW, Rated current (AC) 2,7 A
rotation max. 2800 min-1
Material motorshaft 1.4104
Rotation direction left/right
Protection class IP55 , Operating mode S1
weight 13 kg
