waste water pumps for the agricultural and private sector
good value ✔ powerful ✔ low maintenance ✔ long lasting
VORTEX - for polluted water, also with suspendes particles
VORTEX pumps by ZUWA are perfectly suitable for polluted water, also with solid contents. Depending on the model, they convey up to a particle size of 55mm.
- density of the medium: max. 1100 kg/m³
- temperature of the medium: itstemperaturmax. 50°C
- pH-value: 6 - 11
application
- draining excavation and shafts
- remove floodings
- disposal of sewage water
agricultural application
- draining of a milking parlour
- coneying silage sap or surface water
- watering in gardening and crop cultivation
equipment
- housing and turning wheel made of grey cast iron
- engine in oil bath (thermical engine protection from 230V to 1,5kW)
- drive shaft of stainless steel
- mechaincal seal of silicon carbide
- float switch (only for 230V models)
Förderdruck
Fördermenge
Nennspannung
VORTEX 100, 2850 min-1, 230 V Submersible Waste Water Pump with Float Switch
Art. Nr. 165017
Submersible Waste Water Pump with Float Switch flow rate max. litres 285 l/min flow rate max. m³ 17,1 m³/h max. pressure 0,9 bar Outlet 2" ft (DN 50) Impeller type cast iron, mechanical seal in silicium carbide Sold parts size max. 45 mm Temperature max. 50 °C Max fluid density 1100 kg/m³, pH 6-10 Material pump housing cast iron Electric motor Voltage (AC) 230 V, Nominal frequency 50 Hz Nominal power 0,75 kW, Rated current (AC) 7,0 A rotation max. 2850 min-1 Material motorshaft stainless steel Protection class IP68 , Insulation class F 10 m cable with plug Construction size 440 x 194 weight 23 kg
| Nominal voltage | 230 V |
| Discharge pressure | 0,9 bar |
| Flow rate | 285 l/min |
VORTEX 100-CS, 2850 min-1, 230 V Submersible Grinder Pump with Float Switch
Art. Nr. 165015
Submersible Grinder Pump with Float Switch flow rate max. litres 159 l/min flow rate max. m³ 9,54 m³/h max. pressure 1,7 bar Outlet 2" ft (DN 50) Impeller type cast iron, double mechanical seal For fluids ph 6-10 Temperature max. 50 °C Material pump housing cast iron With cutting system in stainless steel Electric motor Voltage (AC) 230 V, Nominal frequency 50 Hz Nominal power 0,75 kW, Rated current (AC) 6,1 A rotation max. 2850 min-1 Material motorshaft stainless steel Protection class IP68 , Insulation class F Motor protection (thermal) yes, with manual reset on the 10 m cable 10 m cable with plug Construction size 460 x 290 weight 23 kg
| Discharge pressure | 1,7 bar |
| Nominal voltage | 230 V |
| Flow rate | 159 l/min |
VORTEX 150, 2850 min-1, 230 V Submersible Waste Water Pump with Float Switch
Art. Nr. 165020
Submersible Waste Water Pump with Float Switch flow rate max. litres 450 l/min flow rate max. m³ 27 m³/h max. pressure 1,0 bar Outlet 2" ft (DN 50) Impeller type cast iron, mechanical seal silicon carbide For fluids with max. solid size 50 mm Temperature max. 50 °C Max. fluid density 1100 kg/m³, pH 6-10 Material pump housing cast iron Electric motor Voltage (AC) 230 V, Nominal frequency 50 Hz Nominal power 1,1 kW, Rated current (AC) 8,9 A rotation max. 2850 min-1 Material motorshaft stainless steel Protection class IP68 , Insulation class F Motor protection (thermal) yes 10 m cable with plug Construction size 520 x 220 mm weight 33 kg
| Discharge pressure | 1,0 bar |
| Flow rate | 450 l/min |
| Nominal voltage | 230 V |
VORTEX 150, 2850 min-1, 400 V Submersible Waste Water Pump without Float Switch
Art. Nr. 165033
Submersible Waste Water Pump without Float Switch flow rate max. litres 450 l/min flow rate max. m³ 27 m³/h max. pressure 1,0 bar Outlet 2" ft (DN 50) Impeller type cast iron, mechanical seal silicon carbide For fluids with max. solid size 50 mm, pH 6-10 Temperature max. 50 °C Max. fluid density 1100 kg/m³, pH 6-10 Material pump housing cast iron Electric motor Voltage (AC) 400 V, Nominal frequency 50 Hz Nominal power 1,1 kW, Rated current (AC) 3,5 A rotation max. 2850 min-1 Material motorshaft stainless steel Protection class IP68 , Insulation class F 10 m cable with plug Construction size 520 x 220 mm weight 33 kg
| Discharge pressure | 1,0 bar |
| Flow rate | 450 l/min |
| Nominal voltage | 400 V |
VORTEX 200, 2850 min-1, 230 V Submersible Waste Water Pump with Float Switch
Art. Nr. 165018
Submersible Waste Water Pump with Float Switch flow rate max. litres 550 l/min flow rate max. m³ 33,0 m³/h max. pressure 1,1 bar Outlet 2" ft (DN 50) Impeller type cast iron, mechanical seal silicium carbide Fluids For fluids with solids max. size 50 mm Temperature max. 50 °C Max. fluid density 1100 kg/m³, pH 6-10 Material pump housing cast iron Electric motor Voltage (AC) 230 V, Nominal frequency 50 Hz Nominal power 1,5 kW, Rated current (AC) 10 A rotation max. 2850 min-1 Material motorshaft stainless steel Protection class IP68 , Insolation class F Motor protection (thermal) yes 10 m cable with plug Construction size 520 x 220 mm weight 34 kg
| Nominal voltage | 230 V |
| Discharge pressure | 1,1 bar |
| Flow rate | 550 l/min |
VORTEX 200, 2850 min-1, 400 V Submersible Waste Water Pump without Float Switch
Art. Nr. 165057
Submersible Waste Water Pump without Float Switch flow rate max. litres 550 l/min flow rate max. m³ 33,0 m³/h max. pressure 1,1 bar Outlet 2" ft (DN 50) Impeller type cast iron, mechanical seal silicium carbide For fluids with solids max. size 50 mm 50 °C Max. fluid density 1100 kg/m³, pH 6-10 Material pump housing cast iron Electric motor Voltage (AC) 400 V, Nominal frequency 50 Hz Nominal power 1,5 kW, Rated current (AC) 5,0 A rotation max. 2850 min-1 Material motorshaft stainless steel Protection class IP68 ,
| Nominal voltage | 400 V |
| Discharge pressure | 1,1 bar |
| Flow rate | 550 l/min |
VORTEX 300, 2850 min-1, 400 V Submersible Waste Water Pump without Float Switch
Art. Nr. 165019
Submersible Waste Water Pump without Float Switch flow rate max. litres 700 l/min flow rate max. m³ 42,0 m³/h max. pressure 1,2 bar Outlet 3" flange (DN 80) Impeller type cast iron, mechanical seal silicium carbide For fluids with solids max. size 55 mm Temperature max. 50 °C Max. fluid density 1100 kg/m³, pH 6-10 Material pump housing cast iron Electric motor Voltage (AC) 400 V, Nominal frequency 50 Hz Nominal power 2,2 kW, Rated current (AC) 5,5 A rotation max. 2850 min-1 Material motorshaft Edelstahl Protection class IP68 , Insolation class F 10 m Kabel, ohne Stecker Construction size 525 x 235 mm weight 39 kg On option: Connection flange art. 131255 Screws and nuts. 1312551 and 1312552 (4 pcs. of each)
| Discharge pressure | 1,2 bar |
| Flow rate | 700 l/min |
| Nominal voltage | 400 V |
VORTEX 50, 2850 min-1, 230 V Submersible Waste Water Pump with Float Switch
Art. Nr. 165130
Submersible Waste Water Pump with Float Switch flow rate max. litres 180 l/min flow rate max. m³ 10,8 m³/h max. pressure 0,7 bar Outlet 1 ¼“ ft (DN 32) Impeller type cast iron, mechanical seal in alumina/graphite For waste water with solids max. size 25 mm Temperature max. 50 °C Max fluid density 1100 kg/m³, pH 6-10 Material pump housing cast iron Electric motor Voltage (AC) 230 V, Nominal frequency 50 Hz Nominal power 0,37 kW, Rated current (AC) 3,0 A rotation max. 2850 min-1 Material motorshaft stainless steel Protection class IP68 , Insulation class F Motor protection (thermal) yes 10 m cable with plug Construction size 328 x 141 mm weight 11 kg
| Discharge pressure | 0,7 bar |
| Nominal voltage | 230 V |
| Flow rate | 180 l/min |
VORTEX 75, 2850 min-1, 230 V Submersible Pump with fixed Level Regulator
Art. Nr. 165051
Submersible Pump with fixed Level Regulator flow rate max. litres 225 l/min flow rate max. m³ 13,5 m³/h max. pressure 0,8 bar Outlet 1 ¼“ ft (DN 32) Impeller type cast iron, mechanical seal silicon carbide Only for clear water, without solids Temperature max. 50 °C Max. fluid density 1100 kg/m³, pH 6-10 Material pump housing cast iron Electric motor Voltage (AC) 230 V, Nominal frequency 50 Hz Nominal power 0,55 kW, Rated current (AC) 4,2 A rotation max. 2850 min-1 Material motorshaft stainless steel Protection class IP68 , Insulation class F Motor protection (thermal) yes, with automatic reset 10 m cable with plug Construction size 280 x 245 mm weight 17 kg
| Discharge pressure | 0,8 bar |
| Nominal voltage | 230 V |
| Flow rate | 225 l/min |

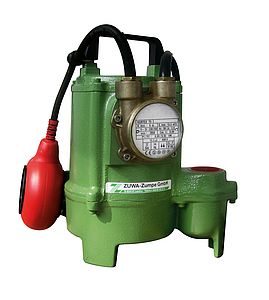

VORTEX 75, 2850 min-1, 230 V Submersible Waste Water Pump with Float Switch
Art. Nr. 1650130
Submersible Waste Water Pump with Float Switch flow rate max. litres 225 l/min flow rate max. m³ 13,5 m³/h max. pressure 0,8 bar Outlet 1 ¼“ ft (DN 32) Impeller type cast iron, mechanical seal in alumina/graphite For waste water with solids, max. solid size 30 mm Temperature max. 50 °C Max. fluid density 1100 kg/m³, pH 6-10 Material pump housing cast iron Electric motor Voltage (AC) 230 V, Nominal frequency 50 Hz Nominal power 0,55 kW, Rated current (AC) 4,2 A rotation max. 2850 min-1 Material motorshaft stainless steel Protection class IP68 , Insolation class F Motor protection (thermal) yes 10 m cable with plug Construction size 281 x 220 mm weight 17 kg
| Discharge pressure | 0,8 bar |
| Flow rate | 225 l/min |
| Nominal voltage | 230 V |
VORTEX 100 ATEX, 230 V ATEX Submersible Waste Water Pump
Art. Nr. 165017ATEXOS
ATEX Submersible Waste Water Pump flow rate max. litres 450 l/min flow rate max. m³ 27,0 m³/h max. pressure 0,7 bar Outlet 2" ft (DN 50) Impeller type cast iron For fluids with solids, max. size 42 mm Temperature max. 40 °C Max. fluid density 1000 kg/M³, ph 6-11 Material pump housing cast iron Electric motor Voltage (AC) 230 V, Nominal frequency 50 Hz Nominal power 0,75 kW, Rated current (AC) 7,0 A rotation max. 2810 min-1 Material motorshaft stainless steel X30Cr13 Protection class IP68 , Insolationclass F 10 m cable without plug ATEX Eexd-IIB-T3-II-2-G Construction size 457 x 300 mm weight 31 kg On option: Float Switch for VORTEX-ATEX, Art. 16501311EX
| Nominal voltage | 230 V |
| Flow rate | 450 l/min |
| Discharge pressure | 0,7 bar |
VORTEX 75, 230 V ATEX ATEX Submersible Waste Water Pump
Art. Nr. 165013ATEXOS
ATEX Submersible Waste Water Pump flow rate max. litres 300 l/min flow rate max. m³ 18,0 m³/h max. pressure 1,0 bar Outlet 1½" ft Impeller type cast iron, mechanical seal silicon carbide pH range of pumped liquids 6-11 , Temperature max. 40 °C Suitable for rain, sewage and grey clean waters For fluids with solids max. size 38 mm Material pump housing cast iron Electric motor Voltage (AC) 230 V, Nominal frequency 50 Hz Nominal power 0,6 kW, Rated current (AC) 4,7 A rotation max. 2820 min-1 Material motorshaft stainless steel X30Cr13 Protection class IP68 , Insulation class F 10 m cable without plug ATEX Eexd-IIB-T3-II-2-G Construction size 365 x 180 mm weight 21 kg On option: Float Switch for VORTEX-ATEX Art. 16501311EX
| Discharge pressure | 1,0 bar |
| Nominal voltage | 230 V |
| Flow rate | 300 l/min |
VORTEX 75, 400 Volt ATEX ATEX Submersible Waste Water Pump
Art. Nr. 1650134ATEXOS
ATEX Submersible Waste Water Pump flow rate max. litres 300 l/min flow rate max. m³ 18,0 m³/h max. pressure 1,0 bar Outlet 1½" ft Impeller type cast iron, mechanical seal silicon carbide pH range of pumped liquids 6-11 For fluids with solids max. size 38 mm Material pump housing cast iron Electric motor Voltage (AC) 400 V, Nominal frequency 50 Hz Nominal power 0,6 kW, Rated current (AC) 1,8 A rotation max. 2770 min-1 Material motorshaft stainless steel X30Cr13 Protection class IP68 , Insolation class F 10 m cable without plug ATEX Eexd-IIB-T3-II-2-G Construction size 365 x 180 mm weight 17 kg On option: Float Switch for VORTEX-ATEX Art. 16501311EX
| Nominal voltage | 400 V |
| Flow rate | 300 l/min |
| Discharge pressure | 1,0 bar |
