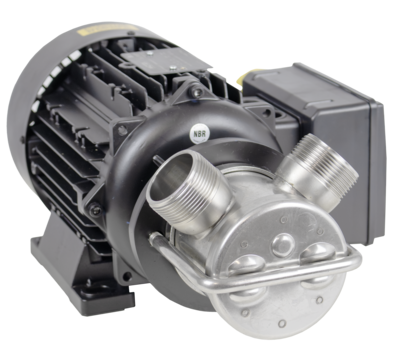

NIROSTAR 2000-D with motor, directly flanged

 +49 8682 8934-50
 export@zuwa.de

max. Fördermenge max. Förderdruck Nennspannung Werkstoff Impeller Typ Dichtung Werkstoff Dichtung

NIROSTAR 2000-D, 220V/60Hz Electric pump without cable, 1100 rpm.

Art. Nr. 19002060
Motor:  1,87 kW, 10,5 A
            1100 rpm., protection class IP55
Pump:  pressure max. 3 bar
            flow rate max. 115  litres per minute (water)
            Impeller and shaft seal Perbunan
            connections: BSP-M 1 1/2"

NIROSTAR 2000-D/PF, 1400 min-1, 400 V Impellerpump w.motor, terminal board conn./PTC, bl

Art. Nr. 190030KPTC
Impellerpump
flow rate max. litres 166 l/min
flow rate max. m³ 9,96 m³/h
max. pressure 3,0 bar
Inlet/outlet 1½" mt
Impeller and mechanical seal Perbunan
Material pump housing stainless steel 1.4301

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 1,5 kW, Rated current (AC) 3,8 A
rotation max. 1400 min-1
Material motorshaft stainless steel 1.4301
Protection class IP55
Electrical connection Control board
With PTC
motor color blue
weight 20 kg
Nominal voltage 400 V
Discharge pressure 3,0 bar
Flow rate 166 l/min

NIROSTAR 2000-D/PF, 1400 min-1, 400 V Impellerpump with motor and cable, without plug

NIROSTAR 2000-D/PF, 1400 min-1, 400 V
Art. Nr. 190030
Impellerpump
flow rate max. litres 166 l/min
flow rate max. m³ 9,96 m³/h
max. pressure 3,0 bar
Inlet/outlet 1½" mt
Impeller Perbunan® (NBR)
Mechanical seal Perbunan® (NBR)
Material pump housing stainless steel 1.4301

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 1,5 kW, Rated current (AC) 3,8 A
rotation max. 1400 min-1
Switch L/R , 4 m cable without plug
Protection class IP55
weight 20 kg
Nominal voltage 400 V
Discharge pressure 3,0 bar
Flow rate 166 l/min

NIROSTAR 2000-D/PF, 1400 min-1, 400 V Impellerpump with motor, terminal board connection

Art. Nr. 190030K
Impellerpump
flow rate max. litres 166 l/min
flow rate max. m³ 9,96 m³/h
max. pressure 3,0 bar
Inlet/outlet 1½" mt
Impeller and mechanical seal Perbunan
Material pump housing stainless steel 1.4301

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 1,5 kW, Rated current (AC) 3,8 A
rotation max. 1400 min-1
Material motorshaft stainless steel 1.4301
Protection class IP55
Electrical connection Control board
motor color blue
weight 20 kg
Nominal voltage 400 V
Flow rate 166 l/min
Discharge pressure 3,0 bar

NIROSTAR 2000-D/PF, 400 Volt Elektronic pump with cable, 1400 r.p.m.

Art. Nr. 19003023
Motor:   1,5 kW ,   A: 3,8
             1400 r.p.m.  IP: 55
Pump:   pressure max. 3 bar
             flow rate max. 166 ltr./min.
             Impeller Perbunan and floating-ring type shaft seal Viton
             Pump flanged directly to the motor shaft

NIROSTAR 2000-D/PF, 900 min-1, 230 V Impellerpump with motor, cable and plug

NIROSTAR 2000-D/PF, 900 min-1, 230 V
Art. Nr. 190020
Impellerpump
flow rate max. litres 115 l/min
flow rate max. m³ 6,9 m³/h
max. pressure 3,0 bar
Inlet/outlet 1½" mt
Impeller Perbunan® (NBR)
Mechanical seal Perbunan® (NBR)
Material pump housing stainless steel 1.4301

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 1,5 kW, Rated current (AC) 13 A
rotation max. 900 min-1
Switch L/R , 2 m cable with plug
Not suitable for bi-directional use!
Protection class IP55
weight 20 kg
Discharge pressure 3,0 bar
Flow rate 115 l/min
Nominal voltage 230 V

NIROSTAR 2000-D/PF, 900 min-1, 230 V Impellerpump with motor, cable and plug , TRIAC

Art. Nr. 190020TR
Impellerpump
flow rate max. litres 115 l/min
flow rate max. m³ 6,9 m³/h
max. pressure 3,0 bar
Inlet/outlet 1½" mt
Impeller and mechanical seal Perbunan
Material pump housing stainless steell AISI 316

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 1,5 kW, Rated current (AC) 13 A
rotation max. 900 min-1
TRIAC, 1/0 direction switch
Not suitable for bi-directional use!
Protection class IP55
2 m cable with plug
weight 20 kg
Discharge pressure 3,0 bar
Flow rate 115 l/min
Nominal voltage 230 V

NIROSTAR 2000-D/PF, 900 min-1, 230 V, BYPASS Impellerpump with motor, cable and plug

NIROSTAR 2000-D/PF, 900 min-1, 230 V, BYPASS
Art. Nr. 190022
Impellerpumpe
flow rate max. litres 115 l/min
flow rate max. m³ 6,9 m³/h
max. pressure 3,0 bar
Inlet/outlet 1½" mt
Flow Regulation BYPASS
Impeller Perbunan® (NBR)
Mechanical seal Perbunan® (NBR)
Material pump housing stainless steel 1.4301

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 1,5 kW, Rated current (AC) 13 A
rotation max. 900 min-1
Switch L/R , 2 m cable with plug
Not suitable for bi-directional use!
Protection class IP55
weight 20 kg
Nominal voltage 230 V
Discharge pressure 3,0 bar
Flow rate 115 l/min

NIROSTAR 2000-D/PF, 900 min-1, 400 V Impellerpump with motor and cable, without plug

NIROSTAR 2000-D/PF, 900 min-1, 400 V
Art. Nr. 190031
Impellerpump
flow rate max. litres 115 l/min
flow rate max. m³ 6,9 m³/h
max. pressure 3,0 bar
Inlet/outlet 1½" mt
Impeller Perbunan® (NBR)
Mechanical seal Perbunan® (NBR)
Material pump housing stainless steel 1.4301

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 1,5 kW, Rated current (AC) 4,1 A
rotation max. 900 min-1
Switch L/R , 4 cable without plug
Protection class IP55
weight 20 kg
Discharge pressure 3,0 bar
Flow rate 115 l/min
Nominal voltage 400 V

NIROSTAR 2000-D/PF, FU, 400 V Impellerpump with frequency conv. and remote contr

NIROSTAR 2000-D/PF, FU, 400 V
Art. Nr. 190030LFU
Impellerpump
flow rate max. litres 22 - 115 l/min
flow rate max. m³ 1,32 - 6,9 m³/h
max. pressure 3,0 bar
Inlet/outlet 1½" mt
Impeller Perbunan® (NBR)
Mechanical seal Perbunan® (NBR)
Material pump housing stainless steel 1.4301
Mounted on stainless steel trolley

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 1,5 kW, Rated current (AC) 4,1 A
rotation max. 175 - 900 min-1
Protection class IP55 , Remote control with 15 m cable
With feeding cable to control box lenght about 10 m
Lenght of connection cable motor/control box about 1,5 m
weight 45 kg
Nominal voltage 400 V
Discharge pressure 3,0 bar
Flow rate 22 - 115 l/min

NIROSTAR CR/V 2000-D/PF, 1400 U/min., 400 Volt Elektronic pump with cable, 1400 r.p.m.

Art. Nr. 19004823
Motor:   1,5 kW ,   A: 3,8
             1400 r.p.m.  IP: 55
Pump:   pressure max. 3 bar
             flow rate max. 166 ltr./min.
             Impeller NEOPENE, mechanical seal Widia/VITON
             Pump flanged directly to the motor shaft

NIROSTAR P/V 2000-D/PF, 400 Volt Elektric pump with cable, 900 r.p.m.

Art. Nr. 19003123
Motor:   1,5 kW,  4,1 A
             900 rpm,   IP: 55
Pump:   max. 3 bar, flow rate max. 115 ltr./min.
             Connections: 1½" external thread, BSP-M
             Impeller NBR and shaft seal Viton
             Pump flanged directly to shaft

NIROSTAR/C 2000-D/V with hydraulic motor Impellerpump with hydraulic motor

Art. Nr. 190040NV
Impellerpump
flow rate max. litres 115 l/min
flow rate max. m³ 6,9 m³/h
max. pressure 2,4 bar
Inlet/outlet 1 ½“ mt
Impeller Neoprene® (CR)
Mechanical seal Viton® (FKM)
Material pump housing stainless steel 1.4301

Hydraulic motor
rotation max. 175 - 900 min-1
Oil pressure 100 - 120 bar
Oil quantity 0,05 l per rotation (45 l for 900 rotations)
weight 11,7 kg
Discharge pressure 2,4 bar
Flow rate 115 l/min

NIROSTAR/CR/V 2000-D/PF, 1400 U/Min., 400 Volt Impellerpump with motor and cable

Art. Nr. 190092
Motor:   1,5 kW ,   A: 3,8
             1400 rpm / IP: 55 / 20 kg;
             Switch L/0/R;
Pump:   Max. pressure 3 bar
             Max. flow rate 166 l/min.
             Impeller Neoprene
             Mechanical seal Viton
             Pumpe diretly flanged onto motor
             with dry run protection + controll pannel

NIROSTAR/CR/V 2000-D/PF, 900 min-1, 400 V Impellerpump with connection DIN 50 milkwinding (D

Art. Nr. 190020DN50
Impellerpump
flow rate max. litres 115 l/min
flow rate max. m³ 6,9 m³/h
max. pressure 3,0 bar
Inlet/outlet DIN 50 milwinding (DIN 11851)
Impeller Neoprene® (CR), mechanical seal Widia/Widia/ Viton
Material pump housing stainless steel 1.4301

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 1,5 kW, Rated current (AC) 4,1 A
rotation max. 900 min-1
Protection class IP55 , Rotation direction left/right
4 m cable without plug
weight 20 kg
Nominal voltage 400 V
Flow rate 115 l/min
Discharge pressure 3,0 bar

NIROSTAR/E 2000-D/PF 480V / 60Hz Electro pump with cable, 900 rpm

Art. Nr. 190033UL
Motor:   kW 1,5
             Driving speedl: 900 rpm,  IP: 55
             480V / 60Hz
Pump:   BAR: max. 3, litres/min. max. 115
             Impeller and floating ring seal EPDM
             Pump directly flanged to motor shaft
with UL approval

NIROSTAR/E 2000-D/PF, 1400 min-1, 400 V Impellerpump with motor and cable, without plug

NIROSTAR/E 2000-D/PF, 1400 min-1, 400 V
Art. Nr. 190032
Impellerpump
flow rate max. litres 166 l/min
flow rate max. m³ 9,96 m³/h
max. pressure 3,0 bar
Inlet/outlet 1½" mt
Impeller EPDM®
Mechanical seal EPDM®
Material pump housing stainless steel 1.4301

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 1,5 kW, Rated current (AC) 3,8 A
rotation max. 1400 min-1
Rotation direction left/right
Protection class IP55 , 4 m cable without plug
weight 20 kg
Nominal voltage 400 V
Discharge pressure 3,0 bar
Flow rate 166 l/min

NIROSTAR/E 2000-D/PF, 1400 min-1, 400 V Impellerpump with motor, terminal board conn.

NIROSTAR/E 2000-D/PF, 1400 min-1, 400 V
Art. Nr. 190034
Impellerpump
flow rate max. litres 166 l/min
flow rate max. m³ 9,96 m³/h
max. pressure 3,0 bar
Inlet/outlet 1½" mt
Impeller EPDM®
Mechanical seal EPDM®
Material pump housing stainless steel 1.4301

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 1,5 kW, Rated current (AC) 3,8 A
rotation max. 1400 min-1
Protection class IP55 , Rotation direction left/right
Electrical connection Control board , without cable and plug
weight 20 kg
Nominal voltage 400 V
Discharge pressure 3,0 bar
Flow rate 166 l/min

NIROSTAR/E 2000-D/PF, 900 min-1, 230 V Impellerpump with motor, cable and plug

NIROSTAR/E 2000-D/PF, 900 min-1, 230 V
Art. Nr. 190021
Impellerpump
flow rate max. litres 115 l/min
flow rate max. m³ 6,9 m³/h
max. pressure 3,0 bar
Inlet/outlet 1½" mt
Impeller EPDM®
Mechanical seal Vidia/Viton®
Material pump housing stainless steel 1.4301

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 1,5 kW, Rated current (AC) 13 A
rotation max. 900 min-1
Rotation direction left/right
Not suitable for bi-directional use!
Protection class IP55 , 2 m cable with plug
weight 20 kg
Nominal voltage 230 V
Flow rate 115 l/min
Discharge pressure 3,0 bar

NIROSTAR/E 2000-D/PF, 900 min-1, 400 V Impellerpump with motor and cable, without plug

NIROSTAR/E 2000-D/PF, 900 min-1, 400 V
Art. Nr. 190033
Impellerpump
flow rate max. litres 115 l/min
flow rate max. m³ 6,9 m³/h
max. pressure 3,0 bar
Inlet/outlet 1½" mt
Impeller EPDM®
Mechanical seal EPDM®
Material pump housing stainless steel 1.4301

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 1,5 kW, Rated current (AC) 4,1 A
rotation max. 900 min-1
Rotation direction left/right
Protection class IP55 , 4 m cable without plug
weight 20 kg
Nominal voltage 400 V
Discharge pressure 3,0 bar
Flow rate 115 l/min

NIROSTAR/E 2000-D/PF, 900 min-1, 400 V Impellerpump with motor, terminal board connection

NIROSTAR/E 2000-D/PF, 900 min-1, 400 V
Art. Nr. 190031K
Impellerpump
flow rate max. litres 115 l/min
flow rate max. m³ 6,9 m³/h
max. pressure 3,0 bar
Inlet/outlet 1½" mt
Impeller EPDM®
Mechanical seal EPDM®
Material pump housing stainless steel 1.4301

Electric motor
Voltage (AC) 400 V, Nominal frequency 50 Hz
Nominal power 1,5 kW, Rated current (AC) 4,1 A
Protection class IP55
Terminal board connection, without cable
weight 20 kg
Nominal voltage 400 V
Discharge pressure 3,0 bar
Flow rate 115 l/min

NIROSTAR/E 2000-D/PF, 900, 230 Volt Impeller pump with cable, EPDM

Art. Nr. 190023
Motor:   230 V,
             1,5 kW, 900 r.p.m., IP: 55
             reserving rotation left or right
Pump:   max. 115 L/Min., max. 3 bar
             Connexions 1,5" male
             Impeller EPDM
             Shaft seal EPDM
             Pump body stainless steel
             Pump flanged directly to shaft
Not suitable for bi-directional use!

NIROSTAR/E 2000-D/PF, 900, 400 Volt Electric pump with cable

Art. Nr. 190033PTC
Motor:   1,5 Kw
             900   r.p.m.   IP: 55
Pumpe: max. 2,7 bar    max. 115 L/min.:
              Impeller and mechanical seal EPDM
              pump flanged directly to shaft
Discharge pressure 3,0 bar
Flow rate 115 l/min
Nominal voltage 400 V

Data, Information, Pictures, Descriptions and Dimensions on the complete site are non-binding and follow only the purpose of visualization. All prices are without VAT, packing and transport.
