max. Fördermenge max. Förderdruck Nennspannung

Diaphragm Pump f Urea (AUS 32, AdBlue, 12 V with ON/-OFF-switch, cable 2 m with clamps

Diaphragm Pump f Urea  (AUS 32, AdBlue, 12 V
Art. Nr. P20400
Self Priming Diaphragm Pump flow rate max. litres 36 l/min flow rate max. m³ 2,16 m³/h max. pressure 1,5 bar Inlet/outlet ¾" hose fitting Material pump housing plastic Electric motor Voltage (DC) 12 V Rated current (DC) 22 A max. Einschaltdauer 20 min Switch ON/OFF 2 m cable with clamps Packing dimension 350 x 180 x 280 mm weight 3,6 kg
Nominal voltage 12 V
Discharge pressure 1,5 bar
Flow rate 36 l/min

Diaphragm pump for Urea (AUS 32, AdBlue), 230 V with cable and plug

Diaphragm pump for Urea (AUS 32, AdBlue), 230 V
Art. Nr. P20310
Self Priming Dagraphm Pump flow rate max. litres 36 l/min flow rate max. m³ 2,16 m³/h max. pressure 1,5 bar Inlet/outlet 3/4" hose barb Material pump housing plastic Electric motor Voltage (AC) 230 V, Nominal frequency 50 Hz Nominal power 0,4 kW, Rated current (AC) 1,95 A rotation max. 1450 min-1 Max. duty cycle 20 min. Switch ON/OFF , 2 m cable with clamps Packaging 350 x 180 x 280 mm weight 7 kg
Nominal voltage 230 V
Flow rate 36 l/min
Discharge pressure 1,5 bar

Membrane pump 24V for urea (AUS 32, AdBlue) with on/off switch, cable 2 meters and clamps

Membrane pump 24V for urea (AUS 32, AdBlue)
Art. Nr. P20410
- Voltage 24V DC - 9 A - flow rate 35-40 L/min. - max. pressure1,5 bar - 2800 rpm - weight 3,6 kg - operation time max. 30 min. - connections 3/4"
Nominal voltage 24 V
Discharge pressure 1,5 bar
Flow rate 36 l/min

NIROSTAR 2000-B f. AdBlue , 980/1700 min-1, 12/24 Impellerpump with gear motor Power Tronic

NIROSTAR 2000-B f. AdBlue , 980/1700 min-1, 12/24
Art. Nr. 13218111312
Impellerpump flow rate max. litres 16/32 l/min flow rate max. m³ 0,96/1,92 m³/h max. pressure 3/3,3 bar Inlet/outlet 1" mt Impeller Perbunan® (NBR) , Bush material stainless steel (1.4404) Shaft sealing ring Perbunan® (NBR) Material pump housing stainless steell 1.4404 Electric motor Power Tronic Voltage (DC) 12/24 V Nominal power 0,35/0,45 kW Rated current (DC) starting current 17/20, operating current 12/15 A rotation max. 980/1700 min-1 Motorshaft S-WE 14x58,5 Protection class IP44 , Operating mode S1 5 m cable with plug weight 4,2 kg
Nominal voltage 12/24 V
Discharge pressure 3/3,3 bar
Flow rate 16/32 l/min

NIROSTAR 2000-B/PF, 2800 min-1, 230 V Impellerpump for Urea (AUS 32, AdBlue®)

NIROSTAR 2000-B/PF, 2800 min-1, 230 V
Art. Nr. 13218116331
Impellerpump flow rate max. litres 45 l/min flow rate max. m³ 2,7 m³/h max. pressure 4 bar Inlet/outlet 1" mt Impeller Perbunan® (NBR) , Bush material stainless steel (1.4404) Shaft sealing ring Perbunan® (NBR) Material pump housing stainless steel 1.4404 Electric motor Voltage (AC) 230 V, Nominal frequency 50 Hz Nominal power 0,55 kW, Rated current (AC) 4,3 A Starting capacitor 40 µF Operating capacitor 20 µF rotation max. 2800 min-1 Material motorshaft 1.4404 Protection class IP55 . Operating mode S1 Motor protection (thermal) 130 weight 10,4 kg
Discharge pressure 4 bar
Flow rate l/min
Nominal voltage 230 V

NIROSTAR 2000-B/PF, 2800 min-1, 400 V Impellerpump for Urea (AUS 32, AdBlue®)

NIROSTAR 2000-B/PF, 2800 min-1, 400 V
Art. Nr. 13218117331
Impellerpump flow rate max. litres 60 l/min flow rate max. m³ 3,6 m³/h max. pressure 5 bar Inlet/outlet 1" mt Impeller Perbunan® (NBR) , Bush material stainless steel (1.4404) Shaft sealing ring Perbunan® (NBR) Material pump housing stainless steel 1.4404 Electric motor Voltage (AC) 400 V, Nominal frequency 50 Hz Nominal power 0,55 kW, Rated current (AC) 1,4 A rotation max. 2800 min-1 Material motorshaft 1.4104 Protection class IP55 , Operating mode S1 weight 10,4 kg
Nominal voltage 400 V
Discharge pressure 4 bar
Flow rate l/min

SimplexBlue Delux AC 35 , 230 V Vane Pumpe for Urea (AUS 32/AdBlue)

SimplexBlue Delux AC 35 , 230 V
Art. Nr. ZUETP0043
flow rate max. litres 37 l/min flow rate max. m³ 2,22 m³/h max. pressure 2 bar Inlet/outlet ¾“ ft With by-pass and bleeder valve Mechanical seal Ceramic/NBR Material pump housing stainless steel Electric motor Voltage (AC) 230 V, Nominal frequency 50 Hz Nominal power 0,37 Rated current (AC), 2,2 A rotation max. 2800 min-1 Motor protection (thermal) included , Operating mode S1 Switch ON/OFF 1,5 m cable with plug Dimensions 200 x 111 mm weight 7,2 kg
Discharge pressure 2 bar
Nominal voltage 230 V
Flow rate l/min

SimplexBlue Delux DC 35 , 12 V Vane Pump for Urea (AUS 32, AdBlue)

SimplexBlue Delux DC 35 , 12 V
Art. Nr. ZUETP0039
flow rate max. litres 35 l/min flow rate max. m³ 2,1 m³/h max. pressure 2 bar Inlet/outlet ¾“ ft With by-pass and bleeder valve Mechanical seal Ceramic/NBR Material pump housing stainless steel Electric motor Voltage (DC) 12 V Nominal power 0,2 kW, .Rated current (DC) 20 A rotation max. 4800 min-1 Operating mode S2 Max. duty cycle 30 min. Switch ON/OFF With 1,5 m cable and clamps Construction size 200 mm x 111 mm weight 5,2 kg
Nominal voltage 12 V
Flow rate 35 l/min
Discharge pressure 2 bar

SimplexBlue Eco DC 30 , 12 V Vane Pumpe for Urea (AUS 32/AdBlue)

SimplexBlue Eco DC 30 , 12 V
Art. Nr. ZUETP0054
flow rate max. litres 32 l/min flow rate max. m³ 1,92 m³/h max. pressure 2 bar Inlet/outlet ¾“ ft With by-pass and bleeder valve Mechanical seal Ceramic/NBR Material pump housing aluminium/rotor insert inox, body in-out Pet-P Electric motor Voltage (DC) 12 V Nominal power 0,2 kW, Rated current (DC) 30,5 A rotation max. 4800 min-1 Operating mode S2 Max. duty cycle 30 min. Switch ON/OFF With 1,5 m cable and clamps Dimensions 200 x 111 mm weight 3,7 kg
Nominal voltage 12 V
Discharge pressure 2 bar
Flow rate 32 l/min

SimplexBlue Eco DC 30 , 24 V Vane Pumpe for Urea (AUS 32/AdBlue)

SimplexBlue Eco DC 30 , 24 V
Art. Nr. ZUETP0055
flow rate max. litres 32 l/min flow rate max. m³ 1,92 m³/h max. pressure 2 bar Inlet/outlet ¾“ ft With by-pass and bleeder valve Mechanical seal Ceramic/NBR Material pump housing aluminium/rotor insert inox Material body in-out: Pet-P Electric motor Voltage (DC) 24 V Nominal power 0,2 kW, Rated current (DC) 16,5 A rotation max. 5150 min-1 Operating mode S2 Max. duty cycle 30 min. Switch ON/OFF With 1,5 m cable and clamps Dimensions 200 x 111 mm weight 3,7 kg
Discharge pressure 2 bar
Flow rate 32 l/min
Nominal voltage 24 V

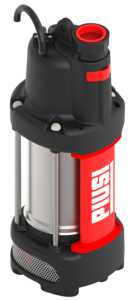

Submersible Pump f.Urea (AUS 32, AdBlue), 230 V 0,37 kW, 35 l/min

Submersible Pump f.Urea (AUS 32, AdBlue), 230 V
Art. Nr. P2035
flow rate max. litres 35 l/min flow rate max. m³ 2,1 m³/h max. pressure 1,8 bar Outlet 1" ft Fluids Harnstoff (AUS32, AdBlue) Temperature max. -11° C up to + 40°C °C Material pump housing according to ISO22241 Suction down to a fluid level of 30 mm Electric motor Voltage (AC) 230 V, Nominal frequency 50 Hz Nominal power 0,37 kW, Rated current (AC) 3,7 A rotation max. 2900 min-1 Protection class IP68 , Operating mode S1 5 m cable, without plug Equipment/Accessories : - Delivery check valve - Innovative integrated pressure regulator system Construction size Ø 140 mm max., heigt 360 mm Packing dimension 54 x 28 x 21 cm weight (incl. packing ) 8,35 kg
Nominal voltage 230 V
Discharge pressure 1,8 bar
Flow rate 35 l/min
