Anbauspritzgerät für Traktor
[Translate to Englisch:] Anbauspritze 300 Liter mit Spritzrechen

Mounting of mounted sprayer

The fixing of the mounted sprayer is made of a three-point linkage. Thanks to this, the devices operating depth can be adjusted with the tractors hydraulic control. With the also in the scope of delivery included remote connection the pump can be controlled during drive mode.

Upon request the mounted sprayer an be equipped with a spray rake. There is a large selection of nozzles that can be mounted to the rakes spraybar available.

please contact our team for more details
Downloads

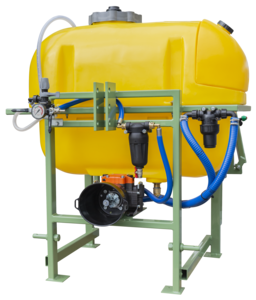

Tractor Mounted Sprayer ABS 300 MP 30-K without spraying unit, for PTO drive

Tractor Mounted Sprayer ABS 300 MP 30-K
Art. Nr. 132484
Diaphragm Pump MP 30 flow rate max. litres 32 l/min flow rate max. m³ 1,92 m³/h max. pressure 30 bar Inlet/outlet 23,5 x 11,6 mm rotation max. 550 min-1 Two membranes made of NBR Material pump housing anodized aluminium Pressure Regulator for MP 30 with pressure gauge and two outlets Equipment/Accessories : Container type Tank for three point hitch , Material Polythylene max. filling content 300 l Remote Connection for MP 30 ; please select additionally a hose kit Dimensions 900 x 600 x 1100 mm weight 85 kg On option: - Hose 3/8" PVC, 40 bar, article no. 30085 - Spray bars - Hose reel - Hose reel holder - Hose kitt (1324831, 1324832 or 1323833) to connect remote control to tractor
