best-selling domestic water supply pump for house and garden

please contact our team for more details
Förderdruck Fördermenge Nennspannung

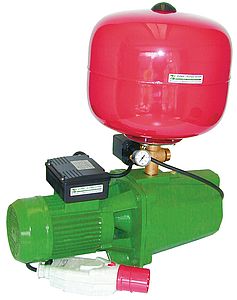

Domestic Water Works JET 150/Z, 230 V Mechanical Pump Controller ZUMATIC

Domestic Water Works  JET 150/Z, 230 V
Art. Nr. 165046HWZ
Centrifugal Pump for Domestic Water Supply flow rate max. litres 120 l/min flow rate max. m³ 7,2 m³/h max. pressure 5,0 bar Inlet 1½" ft (DN40) Impeller type brass, mechanical seal ceramic/caron For clean water, max. temp. 50°C Material pump housing cast iron Electric motor Voltage (AC) 230 V, Nominal frequency 50 Hz Nominal power 1,1 kW,Rated current (AC) 8,5 A rotation max. 2850 min-1 2 m cable with plug Accessories: With surge tank 24 l, pressure switch 1-5 bar and manometer. No dry run protection. weight 33 kg
Discharge pressure 5,0 bar
Nominal voltage 230 V
Flow rate 120 l/min

Domestic Water Works JET 100/E, 230 V Electronical Pump Control PRESFLO VARIO

Domestic Water Works JET 100/E, 230 V
Art. Nr. 165007HWE
Centrifugal Pump for Domestic Water Supply flow rate max. litres 60 l/min flow rate max. m³ 3,6 m³/h max. pressure 4,3 bar Inlet/outlet 1" ft (DN25) Impeller type brass, mechanical seal ceramic/carbon For clean water, max. temperature 50°C Material pump housing cast iron Electric motor Voltage (AC) 230 V, Nominal frequency 50 Hz Nominal power 0,75 kW, Rated current (AC) 4,5 A rotation max. 2850 min-1 1 m cable with plug Equipment/Accessories : Electronical Pump Control PRESFLO VARIO weight 18 kg
Discharge pressure 4,3 bar
Nominal voltage 230 V
Flow rate 60 l/min

Domestic Water Works JET 100/Z, 230 V Mechanical Pump Controller ZUMATIC

Domestic Water Works JET 100/Z, 230 V
Art. Nr. 165007HWZ
Centrifugal Pump for Domestic Water Supply flow rate max. litres 60 l/min flow rate max. m³ 3,6 m³/h max. pressure 4,3 bar Inlet/outlet 1" ft (DN25) Impeller type brass, mechanical seal ceramic/carbon For clean water, max. temperature 50°C Material pump housing cast iron Electric motor Voltage (AC) 230 V, Nominal frequency 50 Hz Nominal power 0,75 kW, Rated current (AC) 4,5 A rotation max. 2850 min-1 2 m cable with plug Accessories: With surge tank 24 l, pressure switch 1-5 bar and manometer. No dry run protection. weight 17 kg
Discharge pressure 4,3 bar
Nominal voltage 230 V
Flow rate 60 l/min

Domestic Water Works JET 150/E, 230 V Electronical Pump Control PRESFLO VARIO

Domestic Water Works JET 150/E, 230 V
Art. Nr. 165046HWE
Centrifugal Pump for Domestic Water Supply flow rate max. litres 120 l/min flow rate max. m³ 7,2 m³/h max. pressure 5,0 bar Inlet 1½" ft (DN40) , Outlet 1¼" ft (DN32) Impeller type brass, mechanical seal ceramic/caron For clean water, max. temp. 50°C Material pump housing cast iron Electric motor Voltage (AC) 230 V, 50 Hz Nominal power 1,1 kW, Rated current (AC) 8,5 A rotation max. 2850 min-1 1 m cable with plug Equipment/Accessories : Electronical Pump Control PRESFLO VARIO weight 33 kg
Discharge pressure 5,0 bar
Nominal voltage 230 V
Flow rate 120 l/min

Domestic Water Works JET 200/Z, 230 V Mechanical Pump Controller ZUMATIC

Domestic Water Works JET 200/Z, 230 V
Art. Nr. 165048HWZ
Centrifugal Pump for Domestic Water Supply flow rate max. litres 120 l/min flow rate max. m³ 7,2 m³/h max. pressure 5,6 bar Inlet 1½" ft (DN40) , Outlet 1¼" ft (DN32) Impeller type brass, mechanical seal ceramic/carbon For clean water, max. temp. 50°C Material pump housing cast iron Electric motor Voltage (AC) 230 V, Nominal frequency 50 Hz Nominal power 1,5 kW, Rated current (AC) 9,4 A rotation max. 2850 min-1 2 m cable with plug Accessories: With surge tank 24 l, pressure switch 2-12 bar and manometer. No dry run protection. weight 38 kg
Flow rate 120 l/min
Nominal voltage 230 V
Discharge pressure 5,6 bar

Domestic Water Works JET 200/Z, 400 V Mechanical Pump Controller ZUMATIC

Domestic Water Works JET 200/Z, 400 V
Art. Nr. 165049HWZ
Centrifugal Pump for Domestic Water Supply flow rate max. litres 120 l/min flow rate max. m³ 7,2 m³/h max. pressure 5,6 bar Inlet 1½" ft (DN40) , Outlet 1¼" iG (DN32) Impeller type brass, mechanical seal ceramic/carbon For clean water, max. temp. 50°C Material pump housing cast iron Electric motor Voltage (AC) 400 V, Nominal frequency 50 Hz Nominal power 1,5 kW, Rated current (AC) 4,4 A rotation max. 2850 min-1 Without cable and plug Accessories: With surge tank 24 l, pressure switch 2-12 bar and manometer. No dry run protection. weight 38 kg
Discharge pressure 5,6 bar
Flow rate 120 l/min
Nominal voltage 400 V

Domestic Water Works JET 300/Z, 400 V Mechanical Pump Controller ZUMATIC

Art. Nr. 165050HWZ
Centrifugal Pump for Domestic Water Supply flow rate max. litres 140 l/min flow rate max. m³ 8,4 m³/h max. pressure 6,2 bar Inlet 1½" ft ((DN40) , Outlet 1¼" ft (DN32) Impeller type brass, mechanical seal ceramic/carbon For clean water, max. temp. 50°C Material pump housing cast iron Electric motor Voltage (AC) 400 V, Nominal frequency 50 Hz Nominal power 2,2 kW, Rated current (AC) 4,6 A rotation max. 2850 min-1 Without cable and plug Accessories: With surge tank 24 l, pressure switch 2-12 bar and manometer. No dry run protection. weight 39 kg
Discharge pressure 6,2 bar
Flow rate 140 l/min
Nominal voltage 400 V
