Automatic Nozzle 120 for Diesel Max. flowrate 120 l/min

Automatic Nozzle 120 for Diesel
Art. Nr. 131070
Connection 1" ft
With swivel
Spout diameter: 29 mm
weight 1,93 kg

Automatic Nozzle 140 ATEX Max. flowrate 140 l/min

Art. Nr. P22675
Connection 1" ft
Without swivel
Fluids Diesel, gasoline, kerosene
weight 2 kg

Automatic Nozzle 280 for Diesel Max. flowrate 280 l/min

Automatic Nozzle 280 for Diesel
Art. Nr. 1310250
Connection 1 ½" ft
With swivel
Spout diameter: 38,5 mm
weight 3,3 kg

Automatic Nozzle 60 f. Diesel, with type approval Max. flowrate 70 l/min

Automatic Nozzle 60 f. Diesel, with type approval
Art. Nr. 131033GN
Connection 1" iG
With swivel
With type approval EN 13012
weight 1,25 kg

Automatic Nozzle 60 for Diesel Max. flowrate 70 l/min

Automatic Nozzle 60 for Diesel
Art. Nr. 131033ZU
Connection 1" ft
With swivel
Spout diameter: 24 mm
weight 1,20 kg

Automatic Nozzle EX 50 ATEX Max. flowrate 60 l/min

Automatic Nozzle EX 50 ATEX
Art. Nr. P61302
Connection 1" ft
With swivel
Fluids Diesel, gasoline, kerosene
weight 1,25 kg

Nozzle Automatic f. Urea (AUS32/AdBlue) stainless steel , w. swivel , Max. flowrate 40 l/m

Nozzle Automatic f. Urea (AUS32/AdBlue)
Art. Nr. 131109ZU
Connection 3/4" Tülle
Max. operating pressure 3,4 bar
weight 2,6 kg

Nozzle automatic 80 for Diesel Max. flowrate 90 l/min

Nozzle automatic 80 for Diesel
Art. Nr. 131069
Connection 1" ft
With swivel
Spout diameter: 29 mm
weight 1,93 kg

Nozzle automatic 90/120 f. Diesel, w. type approva Max. flowrate 120 l/min

Nozzle automatic 90/120 f. Diesel, w. type approva
Art. Nr. 131070GN
Connection 1" ft
With swivel
With type approval EN 13012
Spout diameter: 29 mm
weight 1,65 kg

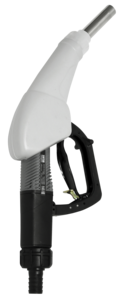

Nozzle automatic for urea (AUS 32, AdBlue) SB325 technopolymer, with stainless steel end piece

Nozzle automatic for urea (AUS 32, AdBlue) SB325
Art. Nr. P61700
Max. flowrate 35 l/min
Connection ¾" spout
Break-Away-System
weight 0,7 kg

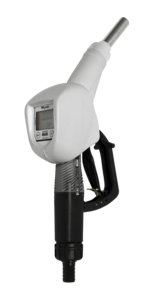

Zapfpistole Autom. f.Harnstoff (AUS32,AdBlue) SB32 technopolymer, stainl.steel end piece , w. integ.

Zapfpistole Autom. f.Harnstoff (AUS32,AdBlue) SB32
Art. Nr. P61701
w. integ. flow meter
Display: 5-digit partial. Total
Max. flowrate 35 l/min
Connection ¾" Tülle
Break-Away-System
weight 1,0 kg
